Overview

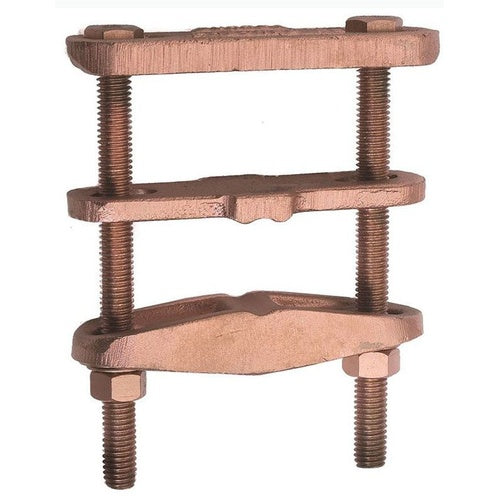

Burndy GA25H26 2/0Awg Ground Connector

Product Specifications

• UPC: 78181000167
• Additional Information: RoHS Compatible; Stud/Bolt Size 3/8 Inch
• Catalog Number: GA25H26
• Model: GA-H
• Conductor Size: 4 AWG Solid to 2/0 AWG Stranded (Copper)
• Ips Size: 1-7/8 to 2-1/2 Inch
• Size: 4 Inch W x 4-3/4 Inch H
• Installation: (2) Hex Head Bolt to H-Beam/Square Tube
• Material: Cast High Copper Alloy Body, Durium Hardware
• Used On: Parallel Cable to H-Beam/Square Tube
• Catalog Description: MECHANICAL GROUND CONNECTOR FOR COPPER CABLE TO "H" BEAM; ACCOMMODATES: "H" BEAM 1-7/8" - 2-1/2" X 2-1/2"; #4 SOLID - 2/0 STRANDED COPPER
• Category: Large Terminals & Connectors
• Full Technical Description: Cast High Copper Alloy Body, Durium Hardware Material; 4 Inch W X 4-3/4 Inch H Size; Parallel Cable to H-Beam/Square Tube Used on; (2) Hex Head Bolt to H-Beam/Square Tube Installation; 4 AWG Solid to 2/0 AWG Stranded (Copper) Conductor Size; 1-7/8 to 2-1/2 Inch IPS Size; RoHS Compatible; Stud/Bolt Size 3/8 Inch; GA-H Model
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Conduit To Rod Clamp
• Unspsc: 39121408
• UPC 12 Digit: 781810001677
• SKU Name: bur ga25h26
