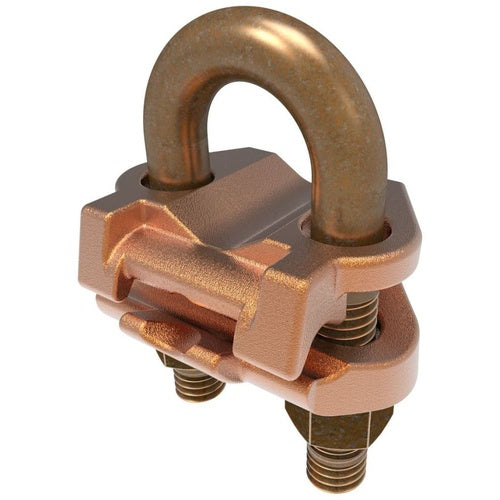

Burndy GAR1526 2/0Awg Ground Connector

Overview

Burndy GAR1526 2/0Awg Ground Connector

Product Specifications

• UPC: 78181023260
• Approval: UL 467, CSA
• Used On: Parallel/90 Degree Copper Cable to Pipe/Rod, Wire to Rebar, Fence Post, Direct Burial
• Additional Information: RoHS Compliant; Rebar Size #9 to #10; Stud/Bolt Size 3/8 Inch; Installation Torque 240 Inch-Pound
• Catalog Number: GAR1526
• Model: GAR
• Conductor Size: 4 to 3/0 AWG Solid (Copper), 5 to 1/0 AWG Stranded (Copper)
• Ips Size: 1 Inch
• Rod Size: 1-1/8 to 1-1/4 Inch
• Size: 2-5/8 Inch Width x 2-7/8 Inch Height
• Installation: U-Bolt to Pipe/Rod
• Material: Bright Dipped Cast High Copper Alloy, Durium Silicon Bronze (Hardware)
• Catalog Description: MECHANICAL GROUNDING CONNECTOR, CABLE TO ROD OR PIPE, 4 AWG (SOL.) - 2/0 AWG (STR.), #9 - #10 REBAR, 1-1 /8" TO 1-1/4" ROD, 1" PIPE, BRIGHT DIPPED.
• Category: Large Terminals & Connectors
• Full Technical Description: Bright Dipped Cast High Copper Alloy, Durium Silicon Bronze (Hardware) Material; 2-5/8 Inch Width X 2-7/8 Inch Height Size; Parallel/90 Degree Copper Cable to Pipe/Rod, Wire to Rebar, Fence Post, Direct Burial Used on; U-Bolt to Pipe/Rod Installation; UL 467, CSA Approval; 4 to 3/0 AWG Solid (Copper), 5 to 1/0 AWG Stranded (Copper) Conductor Size; 1-1/8 to 1-1/4 Inch Rod Size; 1 Inch IPS Size; RoHS Compliant; Rebar Size #9 to #10; Stud/Bolt Size 3/8 Inch; Installation Torque 240 Inch-Pound; GAR Model
• Made In Usa: Yes
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Conduit To Rod Clamp
• Unspsc: 39121408
• UPC 12 Digit: 781810232606
• SKU Name: bur gar1526
