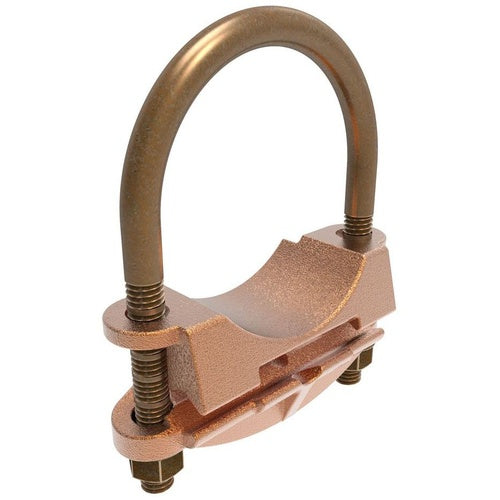

Burndy GAR184C 4Awg Ground Connector

Overview

Burndy GAR184C 4Awg Ground Connector

Product Specifications

• UPC: 78181023480
• Material: Bright Dipped Cast High Copper Alloy Body, Durium Silicon Bronze Hardware
• Approval: UL 467, UL (Canada and US), CSA
• Used On: Parallel/90 Degree Copper Cable to Pipe/Rod, Wire to Rebar, Fence Post, Direct Burial
• Additional Information: RoHS Compatible; Stud/Bolt Size 3/8 Inch; Installation Torque 240 Lb-Inch
• Catalog Number: GAR184C
• Brand Name: DURIUM[TM]
• Model: GAR
• Conductor Size: 8 to 3 AWG Solid (Copper), 9 to 4 AWG Stranded (Copper)
• Ips Size: 2 Inch
• Rod Size: 2 to 2-3/8 Inch
• Size: 3-3/4 Inch W x 4-1/4 Inch H
• Installation: U-Bolt to Pipe/Rod
• Catalog Description: MECHANICAL GROUNDING CONNECTOR, CABLE TO ROD OR PIPE, 8 AWG (SOL.) - 4 AWG (STR.), 2" - 2-3/8" ROD, 2" PIPE, BRIGHT DIPPED.
• Category: Large Terminals & Connectors
• Full Technical Description: Bright Dipped Cast High Copper Alloy Body, Durium Silicon Bronze Hardware Material; 3-3/4 Inch W X 4-1/4 Inch H Size; Parallel/90 Degree Copper Cable to Pipe/Rod, Wire to Rebar, Fence Post, Direct Burial Used on; U-Bolt to Pipe/Rod Installation; UL 467, UL (Canada and Us), CSA Approval; 8 to 3 AWG Solid (Copper), 9 to 4 AWG Stranded (Copper) Conductor Size; 2 to 2-3/8 Inch Rod Size; 2 Inch IPS Size; RoHS Compatible; Stud/Bolt Size 3/8 Inch; Installation Torque 240 lb-Inch; GAR Model
• Made In Usa: Yes
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Conduit To Rod Clamp
• Unspsc: 39121408
• UPC 12 Digit: 781810234808
• SKU Name: bur gar184c
