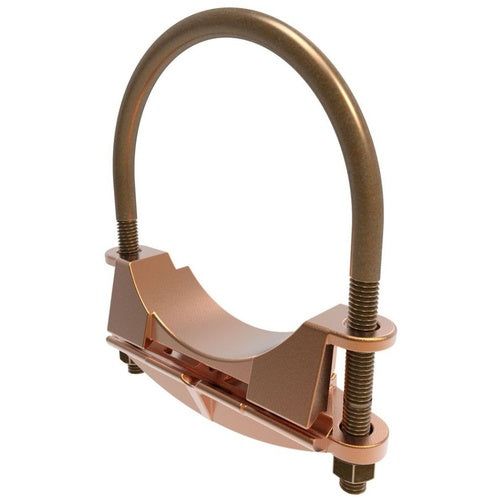

Burndy GAR1929 250Mcm Ground Connector

Overview

Burndy GAR1929 250Mcm Ground Connector

Product Specifications

• UPC: 78181023600
• Material: BRIGHT DIPPED CAST HIGH COPPER ALLOY BODY, DURIUM[T] SILICON BRONZE HARDWARE
• Approval: UL 467, UL (CANADA AND US), CSA
• Used On: PARALLEL OR 90 DEG COPPER CABLE TO PIPE/ROD, WIRE TO REBAR, FENCE POST, DIRECT BURIAL
• Additional Information: ROHS COMPATIBLE WITH EXEMPTION; STUD/BOLT SIZE 3/8 INCH; INSTALLATION TORQUE 240 LB-INCH; FEATURES ONE WRENCH INSTALLATION
• Catalog Number: GAR1929
• Brand Name: BURNDY[R]
• Model: GAR
• Conductor Size: 2/0 TO 4/0 AWG SOLID (COPPER), 1/0 AWG TO 250 KCMIL STRANDED (COPPER)
• Ips Size: 2 1/2 INCH
• Rod Size: 2 1/2 TO 2 7/8 INCH
• Size: 4 1/4 INCH W X 5 INCH H
• Installation: U BOLT TO PIPE/ROD
• Catalog Description: MECHANICAL GROUNDING CONNECTOR, CABLE TO ROD OR PIPE, 2/0 AWG (SOL.) - 250 KCMIL, 2-1/2" TO 2-7/8" ROD, 2-1/2" PIPE, BRIGHT DIPPED.
• Category: Large Terminals & Connectors
• Full Technical Description: Bright Dipped Cast High Copper Alloy (Body), Durium Silicon Bronze (Hardware) Material; 4-1/4 Inch Width X 5 Inch Height Size; Parallel/90 Degree Copper Cable to Pipe/Rod, Wire to Rebar, Fence Post, Direct Burial Cable Used on; U-Bolt to Pipe/Rod Installation; UL 467 Approval; 2/0 to 4/0 AWG Solid, 1/0 AWG to 250 kcmil Stranded Conductor Size; 2-1/2 to 2-7/8 Inch Rod Size; 2-1/2 Inch IPS Size; RoHS Compliant; Installation Torque 240 Inch-Pound; Includes U-Bolt, Nut and Lockwasher; GAR Model
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Conduit To Rod Clamp
• Unspsc: 39121408
• UPC 12 Digit: 781810236000
• SKU Name: bur gar1929
