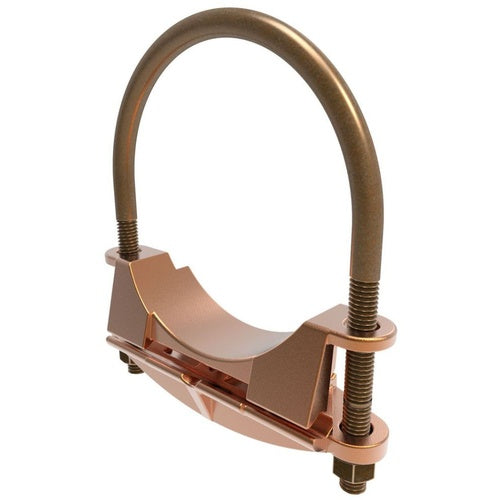

Burndy GAR2129 250Mcm Ground Connector

Overview

Burndy GAR2129 250Mcm Ground Connector

Product Specifications

• UPC: 78181023700
• Approval: UL 467, UL (Canada and US), CSA
• Used On: Parallel/90 Degree Copper Cable to Pipe/Rod, Wire to Rebar, Fence Post, Direct Burial
• Additional Information: RoHS Compliant; Stud/Bolt Size 3/8 Inch; Installation Torque 240 Lb-Inch
• Catalog Number: GAR2129
• Model: Type GAR
• Conductor Size: 2/0 to 4/0 AWG Solid (Copper), 1/0 AWG to 250 KCMIL Stranded (Copper)
• Ips Size: 3-1/2 Inch
• Rod Size: 3-1/2 to 4 Inch
• Size: 5-3/8 Inch W x 6-1/4 Inch H
• Installation: U-Bolt to Pipe/Rod
• Material: Bright Dipped Cast High Copper Alloy Body, Durium Silicon Bronze Hardware
• Catalog Description: MECHANICAL GROUNDING CONNECTOR, CABLE TO ROD OR PIPE, 2/0 AWG (SOL) -250 KCMIL, 3-1/2" PIPE, 3-1/2"-4" ROD, BRIGHT DIPPED.
• Category: Large Terminals & Connectors
• Full Technical Description: Bright Dipped Cast High Copper Alloy Body, Durium Silicon Bronze Hardware Material; 5-3/8 Inch W X 6-1/4 Inch H Size; Parallel/90 Degree Copper Cable to Pipe/Rod, Wire to Rebar, Fence Post, Direct Burial Used on; U-Bolt to Pipe/Rod Installation; UL 467, UL (Canada and Us), CSA Approval; 2/0 to 4/0 AWG Solid (Copper), 1/0 AWG to 250 kcmil Stranded (Copper) Conductor Size; 3-1/2 to 4 Inch Rod Size; 3-1/2 Inch IPS Size; RoHS Compliant; Stud/Bolt Size 3/8 Inch; Installation Torque 240 lb-Inch; TYPE GAR Model
• Made In Usa: Yes
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Conduit To Rod Clamp
• Unspsc: 39121408
• UPC 12 Digit: 781810237007
• SKU Name: bur gar2129
