Burndy GAR3902 1/2-1" Ground Connector

Overview

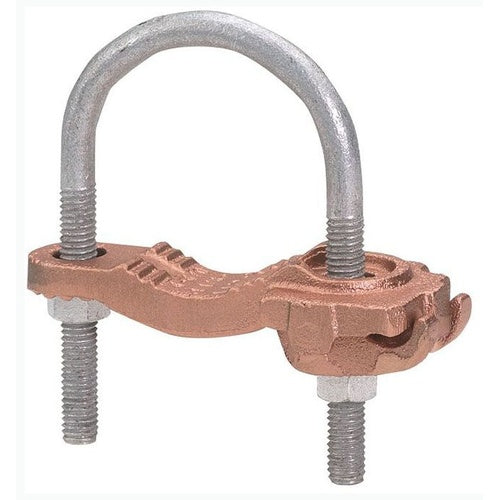

Burndy GAR3902 1/2-1" Ground Connector

Product Specifications

• UPC: 78181023401
• Approval: UL 467, CSA
• Used On: Parallel/90 Degree Copper Ground Conductor to Water Pipe/Rod
• Additional Information: RoHS Compliant; Stud/Bolt Size 3/8 Inch-16 TPI; Installation Torque 240 Inch-Pound; Constructional Feature Corrosion Resistant
• Catalog Number: GAR3902
• Model: GAR
• Conductor Size: 4 to 4/0 AWG Stranded (Copper)
• Ips Size: 1/2 to 1 Inch
• Rod Size: 0.84 to 1.32 Inch
• Size: 3.25 Inch Width x 3.5 Inch Height
• Installation: U-Bolt to Pipe/Rod, Swivel Cable Clamp
• Material: High Copper Alloy, Galvanized Steel (Hardware)
• Catalog Description: MECHANICAL GROUNDING CONNECTOR, CONDUCTOR TO WATER PIPE, 4-4/0 AWG, 1/2"-1" PIPE, 3/8" STUD.
• Category: Large Terminals & Connectors
• Full Technical Description: High Copper Alloy, Galvanized Steel (Hardware) Material; 3.25 Inch Width X 3.5 Inch Height Size; Parallel/90 Degree Copper Ground Conductor to Water Pipe/Rod Used on; U-Bolt to Pipe/Rod, Swivel Cable Clamp Installation; UL 467, CSA Approval; 4 to 4/0 AWG Stranded (Copper) Conductor Size; 0.84 to 1.32 Inch Rod Size; 1/2 to 1 Inch IPS Size; RoHS Compliant; Stud/Bolt Size 3/8 Inch-16 TPI; Installation Torque 240 Inch-Pound; Constructional Feature Corrosion Resistant; GAR Model
• Made In Usa: Yes
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Conduit To Rod Clamp
• Unspsc: 39121408
• UPC 12 Digit: 781810234013
• SKU Name: bur gar3902
