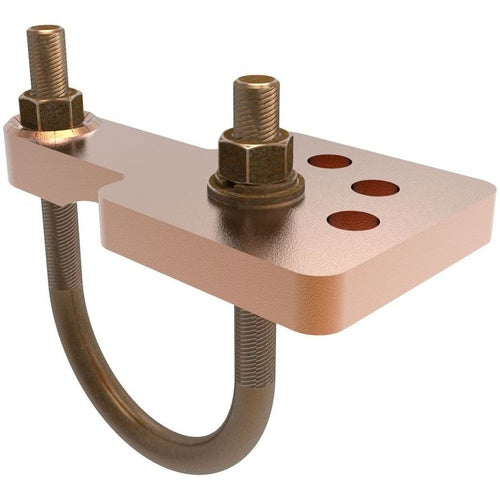

Burndy GAR3903TC 1-1/4-2" Ground Connector

Overview

Burndy GAR3903TC 1-1/4-2" Ground Connector

Product Specifications

• UPC: 78181024111
• Approval: UL 467, CSA
• Used On: Parallel/45/90 Degree Cable to Water Pipe/Rod, Direct Burial
• Additional Information: RoHS Compliant; Stud/Bolt Size 3/8 Inch; Installation Torque 240 Inch-Pound; Constructional Feature Corrosion Resistant
• Catalog Number: GAR3903TC
• Model: GAR-TC
• Conductor Size: 750 KCMIL
• Ips Size: 1-1/4 to 2 Inch
• Rod Size: 1.66 to 2.38 Inch
• Size: 4.75 Inch Width x 4 Inch Height
• Installation: U-Bolt to Pipe/Rod
• Material: Cast High Copper Alloy (Body/Saddle), Durium Silicon Bronze (Hardware)
• Catalog Description: WATER PIPE GROUND CONNECTOR, 1-1/4" - 2" ROD, LARGE, SMOOTH CONNECTOR CONTACT AREA BETWEEN PIPE AND GROUND CLAMP
• Category: Large Terminals & Connectors
• Full Technical Description: Cast High Copper Alloy (Body/Saddle), Durium Silicon Bronze (Hardware) Material; 4.75 Inch Width X 4 Inch Height Size; Parallel/45/90 Degree Cable to Water Pipe/Rod, Direct Burial Used on; U-Bolt to Pipe/Rod Installation; UL 467, CSA Approval; 750 kcmil Conductor Size; 1.66 to 2.38 Inch Rod Size; 1-1/4 to 2 Inch IPS Size; RoHS Compliant; Stud/Bolt Size 3/8 Inch; Installation Torque 240 Inch-Pound; Constructional Feature Corrosion Resistant; GAR-TC Model
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Conduit To Rod Clamp
• Unspsc: 39121408
• UPC 12 Digit: 781810241110
• SKU Name: bur gar3903tc
