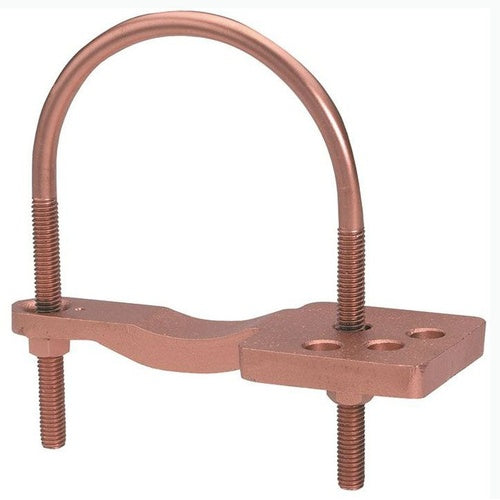

Burndy GAR3905TC Ground Connector Large Pipe Dia

Product Specifications

• UPC: 78181000158
• Approval: UL 467, CSA
• Used On: Parallel/45/90 Degree Cable to Water Pipe/Rod, Direct Burial
• Additional Information: RoHS Compatible; Stud/Bolt Size 3/8 Inch; Installation Torque 240 Lb-Inch
• Catalog Number: GAR3905TC
• Model: GAR-TC
• Conductor Size: 750 KCMIL
• Ips Size: 4 to 5 Inch
• Rod Size: 4.5 to 5.56 Inch
• Size: 8 Inch W x 7.5 Inch H
• Installation: U-Bolt to Pipe/Rod
• Material: Cast High Copper Alloy Body/Saddle, Durium Silicon Bronze Hardware
• Catalog Description: WATER PIPE GROUND CONNECTOR, 4"- 5" ROD, LARGE, SMOOTH CONNECTOR CONTACT AREA BETWEEN PIPE AND GROUND CLAMP
• Category: Large Terminals & Connectors
• Full Technical Description: Cast High Copper Alloy Body/Saddle, Durium Silicon Bronze Hardware Material; 8 Inch W X 7.5 Inch H Size; Parallel/45/90 Degree Cable to Water Pipe/Rod, Direct Burial Used on; U-Bolt to Pipe/Rod Installation; UL 467, CSA Approval; 750 kcmil Conductor Size; 4.5 to 5.56 Inch Rod Size; 4 to 5 Inch IPS Size; RoHS Compatible; Stud/Bolt Size 3/8 Inch; Installation Torque 240 lb-Inch; GAR-TC Model
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Conduit To Rod Clamp
• Unspsc: 39121408
• UPC 12 Digit: 781810001585
• SKU Name: bur gar3905tc
