Overview

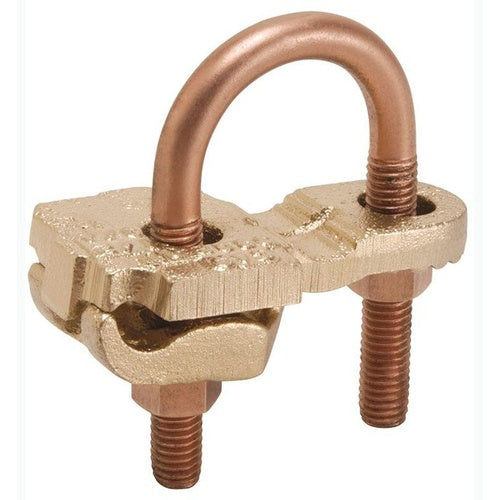

Burndy GAR3907BU 8" Ground Connector

Product Specifications

• UPC: 78181000154
• Approval: UL 467, CSA C22.2
• Used On: Parallel/90 Degree Copper Ground Conductor to Water Pipe/Rod, Direct Burial
• Additional Information: RoHS Compatible; Stud/Bolt Size 3/8 Inch-16 TPI; Installation Torque 240 Lb-Inch
• Catalog Number: GAR3907BU
• Model: GAR-BU
• Conductor Size: 4 to 4/0 AWG Stranded (Copper)
• Ips Size: 8 Inch
• Rod Size: 8.62 Inch
• Size: 10.62 Inch W x 10 Inch H
• Installation: U-Bolt to Pipe/Rod, Swivel Cable Clamp
• Material: Cast High Copper Alloy Body, Durium Silicon Bronze Hardware
• Catalog Description: MECHANICAL GROUNDING CONNECTOR, CONDUCTOR TO WATER PIPE, 4-4/0 AWG, 8" PIPE, 3/8" STUD, 10.62 IN WIDTH.
• Category: Large Terminals & Connectors
• Full Technical Description: Cast High Copper Alloy Body, Durium Silicon Bronze Hardware Material; 10.62 Inch W X 10 Inch H Size; Parallel/90 Degree Copper Ground Conductor to Water Pipe/Rod, Direct Burial Used on; U-Bolt to Pipe/Rod, Swivel Cable Clamp Installation; UL 467, CSA C22.2 Approval; 4 to 4/0 AWG Stranded (Copper) Conductor Size; 8.62 Inch Rod Size; 8 Inch IPS Size; RoHS Compatible; Stud/Bolt Size 3/8 Inch-16 TPI; Installation Torque 240 lb-Inch; GAR-BU Model
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Conduit To Rod Clamp
• Unspsc: 39121408
• UPC 12 Digit: 781810001547
• SKU Name: bur gar3907bu
