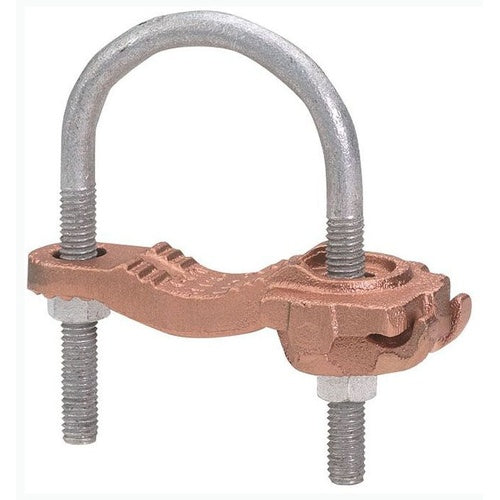

Burndy GAR3908 10" Ground Connector

Overview

Burndy GAR3908 10" Ground Connector

Product Specifications

• UPC: 78181023407
• Material: Cast High Copper Alloy Body, Galvanized Steel Hardware
• Approval: UL 467, CSA C22.2
• Used On: Parallel/90 Degree Copper Ground Conductor to Water Pipe/Rod
• Additional Information: RoHS Compatible; Stud/Bolt Size 3/8 Inch-16 TPI; Installation Torque 240 Lb-Inch
• Catalog Number: GAR3908
• Brand Name: DURIUM[TM]
• Model: GAR
• Conductor Size: 4 to 4/0 AWG Stranded (Copper)
• Ips Size: 10 Inch
• Rod Size: 10.75 Inch
• Size: 12.75 Inch W x 12 Inch H
• Installation: U-Bolt to Pipe/Rod, Swivel Cable Clamp
• Catalog Description: MECHANICAL GROUNDING CONNECTOR, CONDUCTOR TO WATER PIPE, 4-4/0 AWG, 10" PIPE, 3/8" STUD.
• Category: Large Terminals & Connectors
• Full Technical Description: Cast High Copper Alloy Body, Galvanized Steel Hardware Material; 12.75 Inch W X 12 Inch H Size; Parallel/90 Degree Copper Ground Conductor to Water Pipe/Rod Used on; U-Bolt to Pipe/Rod, Swivel Cable Clamp Installation; UL 467, CSA C22.2 Approval; 4 to 4/0 AWG Stranded (Copper) Conductor Size; 10.75 Inch Rod Size; 10 Inch IPS Size; RoHS Compatible; Stud/Bolt Size 3/8 Inch-16 TPI; Installation Torque 240 lb-Inch; GAR Model
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Conduit To Rod Clamp
• Unspsc: 39121408
• UPC 12 Digit: 781810234075
• SKU Name: bur gar3908
