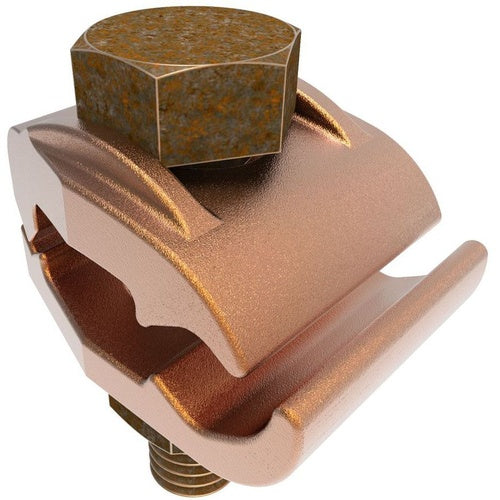

Burndy GB29 250Mcm Ground Connector

Overview

Burndy GB29 250Mcm Ground Connector

Product Specifications

• UPC: 78181023127
• Used On: Cable to Bar, Direct Burial
• Additional Information: Overall Width 1-7/8 Inch; Installation Torque 480 Inch-Pound
• Catalog Number: GB29
• Model: GB
• Conductor Size: 2/0 AWG to 250 KCMIL
• Bolt Size: 1/2 Inch
• Bar Thickness: 1/4 Inch
• Height: 2 Inch
• Material: Cast Copper Alloy (Body), Durium (Bolt/Nut/Lockwasher)
• Approval: UL 467, CSA
• Catalog Description: MECHANICAL GROUNDING CONNECTOR, CABLE TO 1/4" THICK BAR, 2/0 AWG (SOL) -250 KCMIL, 1/2" STUD, 2 IN WIDTH.
• Category: Large Terminals & Connectors
• Full Technical Description: Cast Copper Alloy (Body), Durium (Bolt/Nut/Lockwasher) Material; 2 Inch; Cable to Bar, Direct Burial Used on; UL 467, CSA Approval; 2/0 AWG to 250 kcmil Conductor Size; 1/2 Inch Bolt Size; 1/4 Inch Bar Thickness; Overall Width 1-7/8 Inch; Installation Torque 480 Inch-Pound; GB Model
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Sub Category: Bar To Flat Surface Clamp
• Unspsc: 39121408
• UPC 12 Digit: 781810231272
• SKU Name: bur gb29
