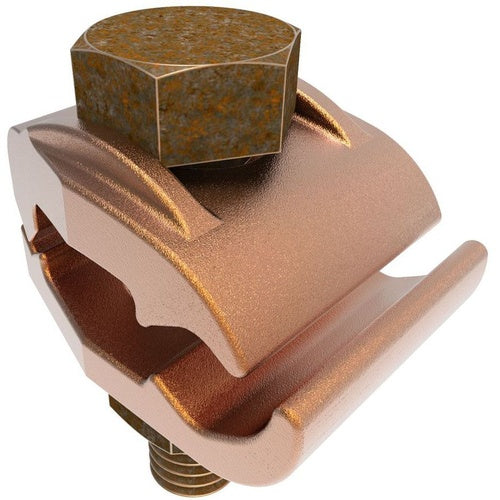

Burndy GB34 500Mcm Ground Connector

Overview

Burndy GB34 500Mcm Ground Connector

Product Specifications

• UPC: 78181023133
• Used On: Cable to Bar, Direct Burial
• Additional Information: RoHS Compatible; Width 2-1/3 Inch; Installation Torque 480 Lb-Inch
• Catalog Number: GB34
• Model: GB
• Conductor Size: 300 to 500 KCMIL
• Bolt Size: 1/2 Inch
• Bar Thickness: 1/4 Inch
• Height: 2.57 Inch
• Material: Cast Copper Alloy Body, Durium Bolt/Nut/Lockwasher
• Approval: UL 467, CSA
• Catalog Description: MECHANICAL GROUNDING CONNECTOR, CABLE TO 1/4" THICK BAR, 300 KCMIL - 500 KCMIL, 1/2" STUD, 2-3/8 IN WIDTH.
• Category: Large Terminals & Connectors
• Full Technical Description: Cast Copper Alloy Body, Durium Bolt/Nut/Lockwasher Material; 2.57 Inch; Cable to Bar, Direct Burial Used on; UL 467, CSA Approval; 300 to 500 kcmil Conductor Size; 1/2 Inch Bolt Size; 1/4 Inch Bar Thickness; RoHS Compatible; Width 2-1/3 Inch; Installation Torque 480 lb-Inch; GB Model
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Bar To Flat Surface Clamp
• Unspsc: 39121408
• UPC 12 Digit: 781810231333
• SKU Name: bur gb34
