Burndy GC15A 14-1/0 Ground ClAMP

Overview

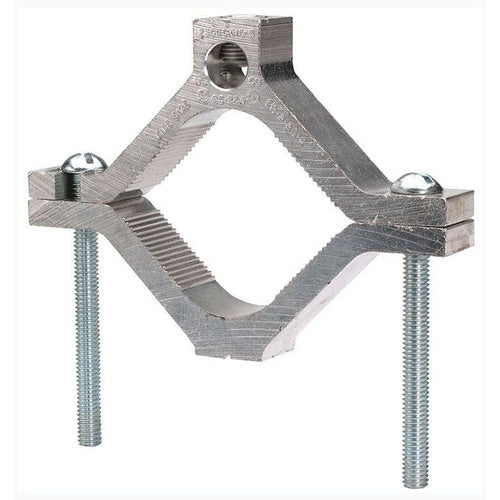

Burndy GC15A 14-1/0 Ground Clamp

Product Specifications

• UPC: 78181024000
• Used On: Copper/Aluminum Conductor to Copper Water Pipe/Conduit
• Additional Information: RoHS Compliant
• Catalog Number: GC15A
• Model: GC-A
• Conductor Size: 8 to 4/0 AWG (Aluminum), 14 to 1/0 AWG Solid/Stranded (Copper)
• Ips Size: 1/2 to 1 Inch
• Size: 2-1/4 Inch Length x 11/16 Inch Width
• Installation: (2) Slotted Screw Wire Connector to Pipe
• Material: High-Strength Tin Plated Extruded Aluminum Alloy
• Approval: UL 467
• Catalog Description: MECHANICAL GROUNDING CONNECTOR, CABLE TO WATER PIPE, 14 AWG - 1/0 AWG, 1/2" - 1" PIPE, AL/CU RATED.
• Category: Large Terminals & Connectors
• Full Technical Description: High-Strength Tin Plated Extruded Aluminum Alloy Material; 2-1/4 Inch Length X 11/16 Inch Width Size; Copper/Aluminum Conductor to Copper Water Pipe/Conduit Used on; (2) Slotted Screw Wire Connector to Pipe Installation; UL 467 Approval; 8 to 4/0 AWG (Aluminum), 14 to 1/0 AWG Solid/Stranded (Copper) Conductor Size; 1/2 to 1 Inch IPS Size; RoHS Compliant; GC-A Model
• Made In Usa: Yes
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Sub Category: Conduit To Rod Clamp
• Unspsc: 39121408
• UPC 12 Digit: 781810240007
• SKU Name: bur gc15a
