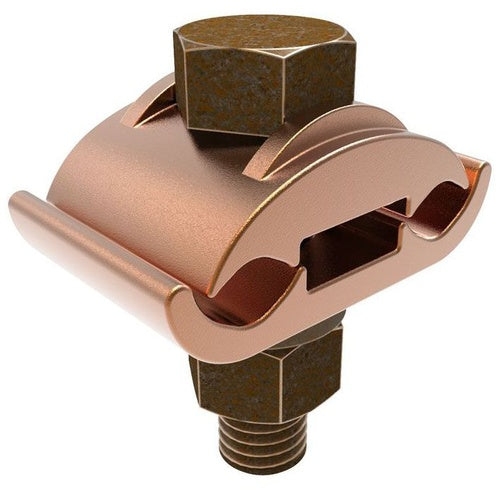

Burndy GC2626 4-2/0 1-Bolt Ground Connector

Product Specifications

• UPC: 78181023166
• Used On: Cable to Bar, Direct Burial
• Additional Information: Overall Width 1.12 Inch; Installation Torque 240 Inch-Pound
• Catalog Number: GC2626
• Model: GC
• Conductor Size: 4 AWG to 2/0 AWG
• Bolt Size: 3/8 Inch
• Bar Thickness: 1/4 Inch
• Height: 2 Inch
• Material: Cast Copper Alloy (Body), Durium (Bolt/Nut/Lockwasher)
• Approval: UL 467, CSA
• Catalog Description: MECHANICAL GROUNDING CONNECTOR, 2 CABLES TO 1/4" THICK BAR, 4 AWG (SOL)-2/0 AWG (STR).
• Category: Large Terminals & Connectors
• Full Technical Description: Cast Copper Alloy (Body), Durium (Bolt/Nut/Lockwasher) Material; 2 Inch; Cable to Bar, Direct Burial Used on; UL 467, CSA Approval; 4 AWG to 2/0 AWG Conductor Size; 3/8 Inch Bolt Size; 1/4 Inch Bar Thickness; Overall Width 1.12 Inch; Installation Torque 240 Inch-Pound; GC Model
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Bar To Flat Surface Clamp
• Unspsc: 39121408
• UPC 12 Digit: 781810231661
• SKU Name: bur gc2626
