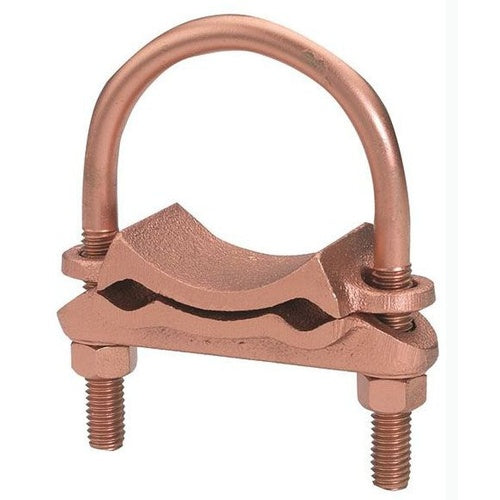

Burndy GD1629 250 Parallel Grd Connector

Product Specifications

• Catalog Description: MECHANICAL GROUNDING CONNECTOR, 2 PARALLEL CABLES TO ROD OR PIPE, 2/0 AWG ( SOL. ) - 250 KCMIL, 1-3/8" TO 1-1/2" ROD, 1-1/4" PIPE.
• Full Technical Description: Cast High Copper Alloy Body, Durium U-Bolt, Nut, Lockwasher Material; 3-1/4 Inch W X 3-1/2 Inch H Size; (2) Parallel Cable to Pipe/Rod, Direct Burial Used on; U-Bolt to Pipe/Rod Installation; UL 467, CSA Approval; 2/0 to 4/0 AWG Solid (Copper), 2/0 AWG to 250 kcmil Stranded (Copper) Conductor Size; 1-3/8 to 1-1/2 Inch Rod Size; 1-1/4 Inch IPS Size; RoHS Compatible; Stud/Bolt Size 3/8 Inch; Installation Torque 240 lb-Inch; GD Model
• Manufacturer: BURNDY PRODUCTS
• Sub Category: Conduit To Rod Clamp
• UPC 12 Digit: 781810260289
• SKU Name: bur gd1629
