Overview

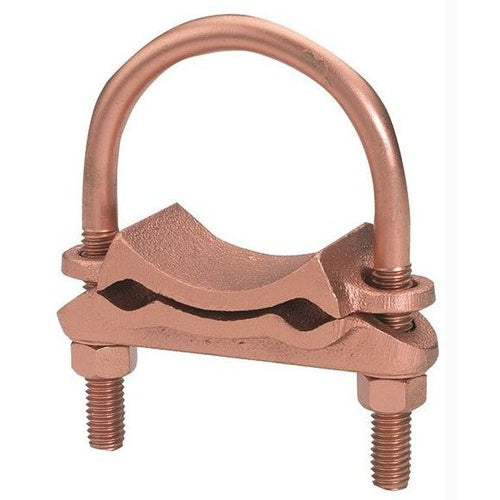

Burndy GD184C 4 Parallel Grd Connector

Product Specifications

• Catalog Description: MECHANICAL GROUNDING CONNECTOR, 2 PARALLEL CABLES TO ROD OR PIPE, 8 AWG (SOL.) - 4 AWG (STR.), 2" TO 2-3/8" ROD, 2" PIPE.
• Full Technical Description: Cast High Copper Alloy Body, Durium U-Bolt, Nut, Lockwasher Material; 3-3/4 Inch W X 4-3/8 Inch H Size; (2) Parallel Cable to Pipe/Rod, Direct Burial Used on; U-Bolt to Pipe/Rod Installation; UL 467, CSA Approval; 8 to 4 AWG Solid/Stranded (Copper) Conductor Size; 2 to 2-3/8 Inch Rod Size; 2 Inch IPS Size; RoHS Compatible; Stud/Bolt Size 3/8 Inch; Installation Torque 240 lb-Inch; GD Model
• Manufacturer: BURNDY PRODUCTS
• Sub Category: Conduit To Rod Clamp
• UPC 12 Digit: 781810260326
• SKU Name: bur gd184c
