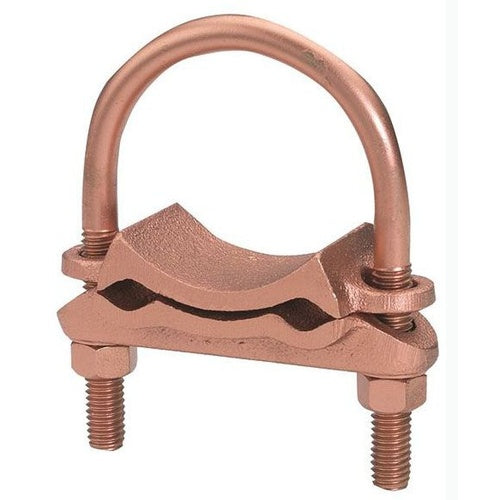

Burndy GD2029 250 Parallel Ground Connector

Overview

Burndy GD2029 250 Parallel Ground Connector

Product Specifications

• UPC: 78181026039
• Approval: UL 467, CSA
• Used On: (2) Parallel Cable to Pipe/Rod, Direct Burial
• Additional Information: RoHS Compatible; Stud/Bolt Size 3/8 Inch; Installation Torque 240 Lb-Inch
• Catalog Number: GD2029
• Model: GD
• Conductor Size: 2/0 to 4/0 AWG Solid (Copper), 2/0 AWG to 250 KCMIL Stranded (Copper)
• Ips Size: 3 Inch
• Rod Size: 3 to 3-1/2 Inch
• Size: 4-7/8 Inch W x 5-5/8 Inch H
• Installation: U-Bolt to Pipe/Rod
• Material: Cast High Copper Alloy Body, Durium U-Bolt, Nut, Lockwasher
• Catalog Description: MECHANICAL GROUNDING CONNECTOR, 2 PARALLEL CABLES TO ROD OR PIPE, 2/0 AWG (SOL.) - 250 KCMIL, 3" TO 3-1/2" ROD, 3" PIPE.
• Category: Large Terminals & Connectors
• Full Technical Description: Cast High Copper Alloy Body, Durium U-Bolt, Nut, Lockwasher Material; 4-7/8 Inch W X 5-5/8 Inch H Size; (2) Parallel Cable to Pipe/Rod, Direct Burial Used on; U-Bolt to Pipe/Rod Installation; UL 467, CSA Approval; 2/0 to 4/0 AWG Solid (Copper), 2/0 AWG to 250 kcmil Stranded (Copper) Conductor Size; 3 to 3-1/2 Inch Rod Size; 3 Inch IPS Size; RoHS Compatible; Stud/Bolt Size 3/8 Inch; Installation Torque 240 lb-Inch; GD Model
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Conduit To Rod Clamp
• Unspsc: 39121408
• UPC 12 Digit: 781810260395
• SKU Name: bur gd2029
