Burndy GK1829 2/0Sol-250 2 Ips

Overview

Burndy GK1829 2/0Sol-250 2 Ips

Product Specifications

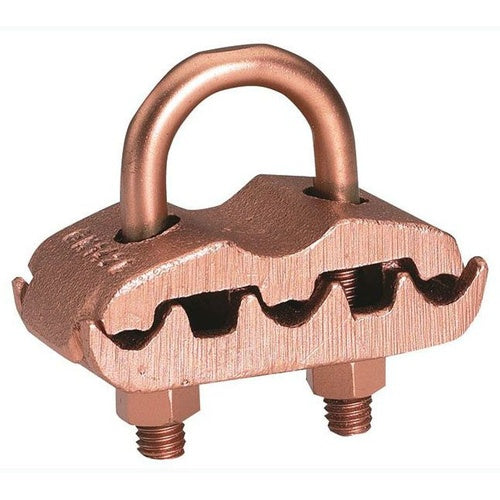

• Catalog Description: MECHANICAL GROUNDING CONNECTOR, 3 CABLES TO ROD OR PIPE, 2/0 AWG (SOL.) - 250KCMIL, 2" PIPE, 2" - 2-3/8" ROD, 1/2" STUD.
• Category: Large Terminals & Connectors
• Full Technical Description: Cast High Copper Alloy Body, Durium U-Bolt, Nut, Lockwasher Material; 5-1/8 Inch W X 4-3/8 Inch H Size; (3) Copper Cable to Pipe/Rod, Direct Burial Used on; U-Bolt to Pipe/Rod Installation; UL 467, CSA Approval; 2/0 to 4/0 AWG Solid (Copper), 1/0 AWG to 250 kcmil Stranded (Copper) Conductor Size; 2 to 2-3/8 Inch Rod Size; 2 Inch IPS Size; RoHS Compatible; Stud/Bolt Size 1/2 Inch; Installation Torque 480 lb-Inch; GK Model
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Conduit To Rod Clamp
• Unspsc: 39121408
• UPC 12 Digit: 781810233627
• SKU Name: bur gk1829
