Overview

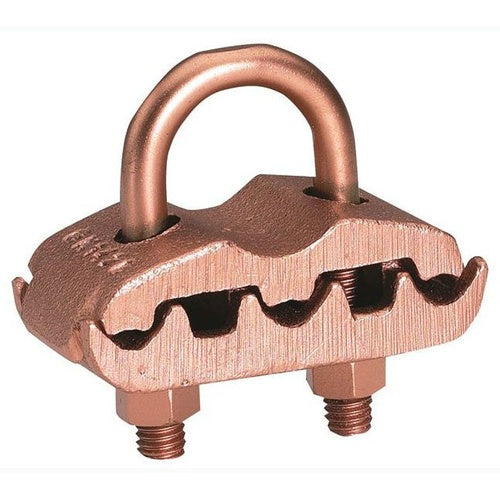

Burndy GK6434 300-500 Copper Ground Connector

Product Specifications

• Catalog Description: MECHANICAL GROUNDING CONNECTOR, 3 CABLES TO ROD OR PIPE, 300 KCMIL - 500 KCMIL, 3/8" PIPE, 5/8" - 3/4" ROD, 1/2" STUD.
• Full Technical Description: Cast High Copper Alloy Body, Durium U-Bolt, Nut, Lockwasher Material; 4 Inch W X 3-1/2 Inch H Size; (3) Copper Cable to Pipe/Rod, Direct Burial Used on; U-Bolt to Pipe/Rod Installation; UL 467, CSA Approval; 18 AWG Solid (Copper), 300 to 500 kcmil Stranded (Copper) Conductor Size; 5/8 to 3/4 Inch Rod Size; 3/8 Inch IPS Size; RoHS Compatible; Stud/Bolt Size 1/2 Inch; Installation Torque 480 lb-Inch; GK Model
• Made In Usa: Yes
• Manufacturer: BURNDY PRODUCTS
• Sub Category: Conduit To Rod Clamp
• Unspsc: 39121408
• UPC 12 Digit: 781810233542
• SKU Name: bur gk6434

Resources

• Product Spec Sheet
• Manufacturer Spec Sheet
