Overview

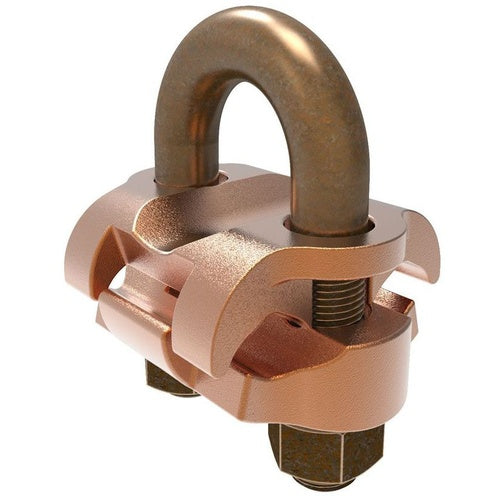

Burndy GP6426 4-2/0 Copper Ground Connector

Product Specifications

• UPC: 78181026054
• Approval: UL 467, CSA
• Used On: (2) Parallel Copper Cable Perpendicular to Column/Pipe/Rod, Direct Burial
• Additional Information: RoHS Compliant; Stud/Bolt Size 3/8 Inch; Installation Torque 240 Inch-Pound
• Catalog Number: GP6426
• Model: GP
• Conductor Size: 4 to 3/0 AWG Solid (Copper), 5 to 2/0 AWG Stranded (Copper)
• Ips Size: 3/8 Inch
• Rod Size: 5/8 to 3/4 Inch
• Size: 2-1/8 Inch Width x 2-1/2 Inch Height
• Installation: U-Bolt to Pipe/Rod
• Material: Cast High Copper Alloy (Body), Durium (U-Bolt/Nut/Lockwasher)
• Catalog Description: MECHANICAL GROUNDING CONNECTOR, 2 CABLES TO ROD OR PIPE, 4 AWG (SOL.) - 2/0 AWG (STR.), 3/8" PIPE, 5/8" - 3/4" ROD, 3/8" STUD.
• Category: Large Terminals & Connectors
• Full Technical Description: Cast High Copper Alloy (Body), Durium (U-Bolt/Nut/Lockwasher) Material; 2-1/8 Inch Width X 2-1/2 Inch Height Size; (2) Parallel Copper Cable Perpendicular to Column/Pipe/Rod, Direct Burial Used on; U-Bolt to Pipe/Rod Installation; UL 467, CSA Approval; 4 to 3/0 AWG Solid (Copper), 5 to 2/0 AWG Stranded (Copper) Conductor Size; 5/8 to 3/4 Inch Rod Size; 3/8 Inch IPS Size; RoHS Compliant; Stud/Bolt Size 3/8 Inch; Installation Torque 240 Inch-Pound; GP Model
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Conduit To Rod Clamp
• Unspsc: 39121408
• UPC 12 Digit: 781810260548
• SKU Name: bur gp6426
