Burndy GRC12 1/2 Ground Rod ClAMP

Overview

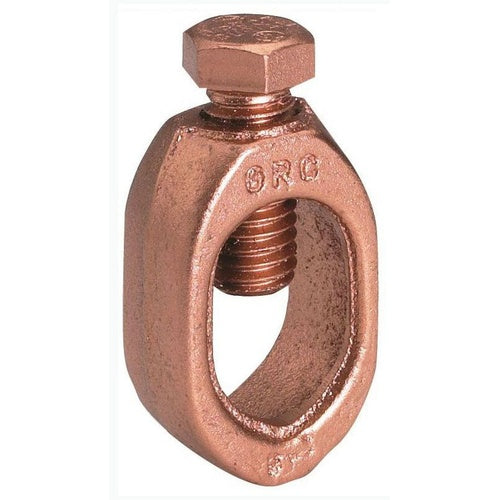

Burndy GRC12 1/2 Ground Rod Clamp

Product Specifications

• UPC: 78181023094
• Used On: Copper Cable to Copper Rod, Direct Burial
• Additional Information: RoHS Compliant; Stud/Bolt Size 3/8 Inch
• Catalog Number: GRC12
• Model: GRC
• Conductor Size: 10 AWG Solid (Copper), 10 to 2 AWG Stranded (Copper)
• Rod Size: 1/2 Inch
• Size: 0.63 Inch Length x 0.89 Inch Width x 2 Inch Height
• Installation: (1) Hex Head Bolt
• Material: High-Strength Cast Copper Alloy
• Approval: UL 467, CSA
• Catalog Description: MECHANICAL GROUND ROD CLAMP, FOR CABLE TO ROD, HIGH STRENGTH, 10 AWG (SOL)- 2 AWG (STR), 1/2" DRIVE ROD, 3/8" STUD.
• Category: Large Terminals & Connectors
• Full Technical Description: High-Strength Cast Copper Alloy Material; 0.63 Inch Length X 0.89 Inch Width X 2 Inch Height Size; Copper Cable to Copper Rod, Direct Burial Used on; (1) Hex Head Bolt Installation; UL 467, CSA Approval; 10 AWG Solid (Copper), 10 to 2 AWG Stranded (Copper) Conductor Size; 1/2 Inch Rod Size; RoHS Compliant; Stud/Bolt Size 3/8 Inch; GRC Model
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Conduit To Rod Clamp
• Unspsc: 39121408
• UPC 12 Digit: 781810230947
• SKU Name: bur grc12
