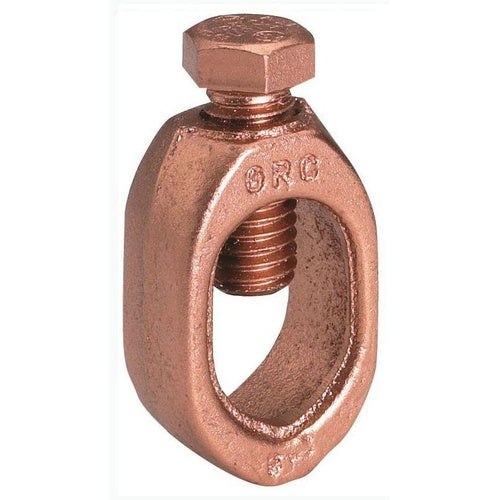

Burndy GRC34 3/4 Ground Rod ClAMP

Overview

Burndy GRC34 3/4 Ground Rod Clamp

Product Specifications

• UPC: 78181023098
• Used On: Copper Cable to Copper Rod, Direct Burial
• Additional Information: RoHS Compliant; Stud/Bolt Size 3/8 Inch
• Catalog Number: GRC34
• Model: GRC
• Conductor Size: 8 AWG Solid (Copper), 8 to 1/0 AWG Stranded (Copper)
• Rod Size: 3/4 Inch
• Size: 0.65 Inch Length x 1.09 Inch Width x 2.47 Inch Height
• Installation: (1) Hex Head Bolt
• Material: High-Strength Cast Copper Alloy
• Approval: UL 467
• Catalog Description: MECHANICAL GROUND ROD CLAMP, FOR CABLE TO ROD, HIGH STRENGTH, 8 AWG (SOL.) - 1/0 AWG (STR.), 3/4" GROUND ROD, 3/8" STUD.
• Category: Large Terminals & Connectors
• Full Technical Description: High-Strength Cast Copper Alloy Material; 0.65 Inch Length X 1.09 Inch Width X 2.47 Inch Height Size; Copper Cable to Copper Rod, Direct Burial Used on; (1) Hex Head Bolt Installation; UL 467 Approval; 8 AWG Solid (Copper), 8 to 1/0 AWG Stranded (Copper) Conductor Size; 3/4 Inch Rod Size; RoHS Compliant; Stud/Bolt Size 3/8 Inch; GRC Model
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Sub Category: Conduit To Rod Clamp
• Unspsc: 39121408
• UPC 12 Digit: 781810230985
• SKU Name: bur grc34
