Burndy GRC58 5/8 Ground Rod ClAMP

Overview

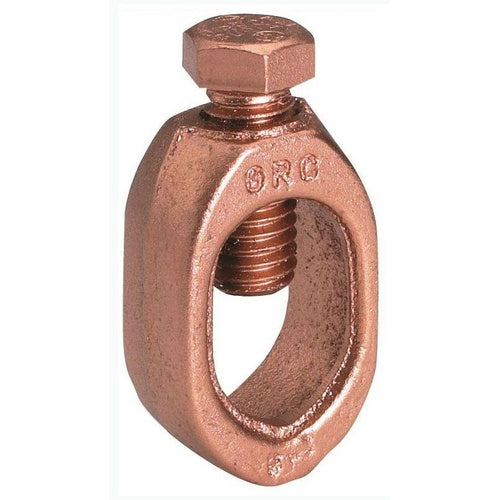

Burndy GRC58 5/8 Ground Rod Clamp

Product Specifications

• UPC: 78181023096
• Used On: Copper Cable to Copper Rod, Direct Burial
• Additional Information: RoHS Compliant; Stud/Bolt Size 3/8 Inch
• Catalog Number: GRC58
• Model: GRC
• Conductor Size: 10 AWG Solid (Copper), 12 to 1 AWG Stranded (Copper)
• Rod Size: 5/8 Inch
• Size: 0.63 Inch Length x 0.95 Inch Width x 2.19 Inch Height
• Installation: (1) Hex Head Bolt
• Material: High-Strength Cast Copper Alloy
• Approval: UL 467, CSA
• Catalog Description: MECHANICAL GROUND ROD CLAMP, FOR CABLE TO ROD, HIGH STRENGTH, 10 AWG (SOL)- 1 AWG (STR), 5/8" DRIVE ROD, 3/8" STUD.
• Category: Large Terminals & Connectors
• Full Technical Description: High-Strength Cast Copper Alloy Material; 0.63 Inch Length X 0.95 Inch Width X 2.19 Inch Height Size; Copper Cable to Copper Rod, Direct Burial Used on; (1) Hex Head Bolt Installation; UL 467, CSA Approval; 10 AWG Solid (Copper), 12 to 1 AWG Stranded (Copper) Conductor Size; 5/8 Inch Rod Size; RoHS Compliant; Stud/Bolt Size 3/8 Inch; GRC Model
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Sub Category: Conduit To Rod Clamp
• Unspsc: 39121408
• UPC 12 Digit: 781810230961
• SKU Name: bur grc58
