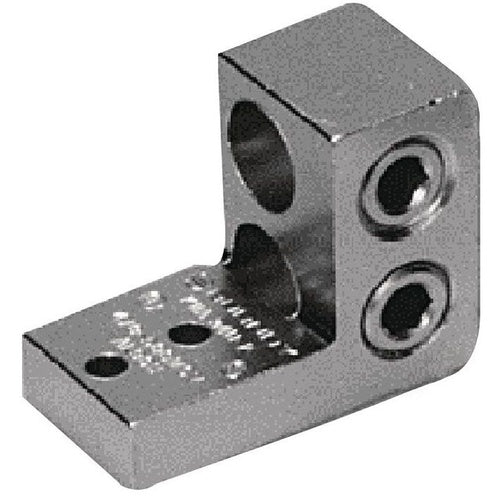

Burndy K11A34U-2 500 Aluminum/Copper 2-Hole Terminal

Overview

Burndy K11A34U-2 500 Aluminum/Copper 2-Hole Terminal

Product Specifications

• UPC: 78181037027
• Pad Size: 0.63 Inch Thickness
• Stud Size: 1/4 Inch
• Overall Length: 2.31 Inch
• Approval: UL 468A/B, CSA
• Additional Information: ROHS COMPATIBLE WITH EXEMPTION; DUAL-RATED PANEL BOARD LUG; INSTALLATION TORQUE 375 IN-LB
• Catalog Number: K11A34U2
• Model: K11A-U
• Number Of Conductors: 2
• Minimum Conductor Size: 4/0 AWG Stranded
• Maximum Conductor Size: 500 KCMIL Stranded
• Conductor Material: Copper/Aluminum
• Material: Electro Tin Plated Aluminum Alloy
• Number Of Pad Holes: 2
• Catalog Description: ALUMINUM UNIVERSAL TERMINAL, 2 HOLE, TWO: 4/0 AWG (STR)-500 KCMIL, 1/4" STUD, .69" STUD HOLE SPACING, 2 SCREWS, AL/CU RATED, TIN PLATED.
• Category: Large Terminals & Connectors
• Full Technical Description: Electro Tin Plated Aluminum Alloy Material; 2.31 Inch Overall Length; 4/0 AWG Stranded min. Conductor Size; 500 kcmil Stranded Max. Conductor Size; Copper/Aluminum Conductor Material; UL 468A/B, CSA Approval; 2 Conductor(S); 1/4 Inch Stud Size; 0.63 Inch Thickness Pad Size; 2 Pad Hole(S); RoHS Compatible With Exemption; Dual-Rated Panel Board Lug; Installation Torque 375 in-lb; K11A-U Model
• Made In Usa: Yes
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Mechanical Cable Lug
• Unspsc: 39121408
• UPC 12 Digit: 781810370278
• SKU Name: bur k11a34u2

Resources

• Technical Drawing
• Technical Line Drawing
• Manufacturer Spec Sheet
