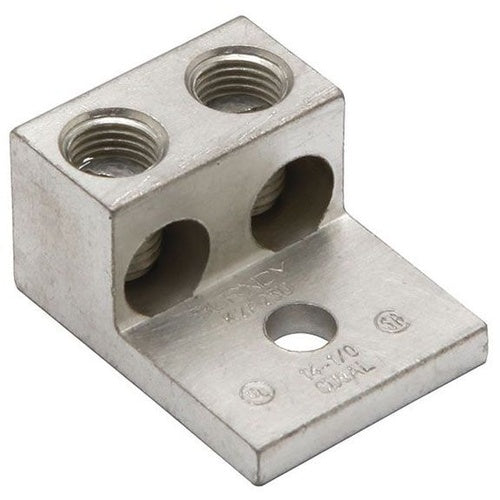

Burndy K2A25U (2)1/0 Copper/Aluminum Mechanical Lug

Overview

Burndy K2A25U (2)1/0 Copper/Aluminum Mechanical Lug

Product Specifications

• UPC: 78181060004
• Number Of Pad Holes: 1
• Pad Size: 0.81 Inch Length x 1.13 Inch Width x 0.19 Inch Thickness
• Stud Size: 1/4 Inch
• Overall Length: 1.47 Inch
• Approval: UL 468A/B, CSA
• Additional Information: RoHS Compliant; Overall Height 0.79 Inch; Temperature Rating 90 Deg C; Installation Torque 50 Inch-Pound; Number of Screw 2
• Catalog Number: K2A25U
• Model: K2A-U
• Type: Universal, Dual Rated
• Number Of Conductors: 2
• Minimum Conductor Size: 14 AWG Stranded
• Maximum Conductor Size: 1/0 AWG Stranded
• Conductor Material: Copper/Aluminum
• Material: Electro Tin Plated High Strength Aluminum Alloy
• Catalog Description: ALUMINUM UNIVERSAL TERMINAL, 2 CONDUCTOR, 1 HOLE, 14-1/0 AWG (STR), 1/4" STUD, 2 SCREWS, AL/CU RATED, TIN PLATED.
• Category: Large Terminals & Connectors
• Full Technical Description: Universal, Dual Rated Type; Electro Tin Plated High Strength Aluminum Alloy Material; 1.47 Inch Overall Length; 14 AWG Stranded min. Conductor Size; 1/0 AWG Stranded Max. Conductor Size; Copper/Aluminum Conductor Material; UL 468A/B, CSA Approval; 2 Conductor(S); 1/4 Inch Stud Size; 0.81 Inch Length X 1.13 Inch Width X 0.19 Inch Thickness Pad Size; 1 Pad Hole(S); RoHS Compliant; Overall Height 0.79 Inch; Temperature Rating 90 Deg C; Installation Torque 50 Inch-Pound; Number of Screw 2; K2A-U Model
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Sub Category: Mechanical Cable Lug
• Unspsc: 39121408
• UPC 12 Digit: 781810600047
• SKU Name: bur k2a25u
