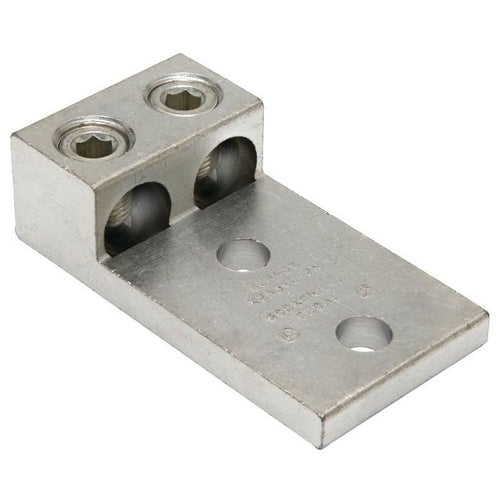

Burndy K2A31U-2N 350 Aluminum/Copper 2-Hole Terminal

Overview

Burndy K2A31U-2N 350 Aluminum/Copper 2-Hole Terminal

Product Specifications

• UPC: 78181060016
• Pad Size: 3 Inch L x 2.31 Inch W x 0.31 Inch Thk
• Stud Size: 1/2 Inch
• Overall Length: 4.5 Inch
• Approval: UL 468A/486B, CSA
• Additional Information: RoHS Compliant; Installation Torque 275 Lb-Inch; Stud Hole Spacing Size 1.75 Inch
• Catalog Number: K2A31U2N
• Model: Type K2A-U
• Number Of Conductors: 2
• Minimum Conductor Size: 6 AWG Stranded Aluminum/Copper
• Maximum Conductor Size: 350 KCMIL Aluminum, 350 KCMIL Stranded Copper
• Conductor Material: Aluminum/Copper
• Material: Electro Tin Plated Aluminum Alloy
• Number Of Pad Holes: 2 NEMA
• Catalog Description: ALUMINUM UNIVERSAL TERMINAL, 2 CONDUCTOR, 2 HOLE, 6 AWG (STR)-350 KCMIL, 1/2" STUD, 1.75" STUD HOLE SPACING, 2 SCREWS, AL/CU RATED, TIN PLATED.
• Category: Large Terminals & Connectors
• Full Technical Description: Electro Tin Plated Aluminum Alloy Material; 4.5 Inch Overall Length; 6 AWG Stranded Aluminum/Copper min. Conductor Size; 350 kcmil Aluminum, 350 kcmil Stranded Copper Max. Conductor Size; Aluminum/Copper Conductor Material; UL 468A/486B, CSA Approval; 2 Conductor(S); 1/2 Inch Stud Size; 3 Inch L X 2.31 Inch W X 0.31 Inch Thk Pad Size; 2 NEMA Pad Hole(S); RoHS Compliant; Installation Torque 275 lb-Inch; Stud Hole Spacing Size 1.75 Inch; TYPE K2A-U Model
• Made In Usa: Yes
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Sub Category: Mechanical Cable Lug
• Unspsc: 39121408
• UPC 12 Digit: 781810600160
• SKU Name: bur k2a31u2n

Resources

• Technical Drawing
• Technical Line Drawing
• Manufacturer Spec Sheet
