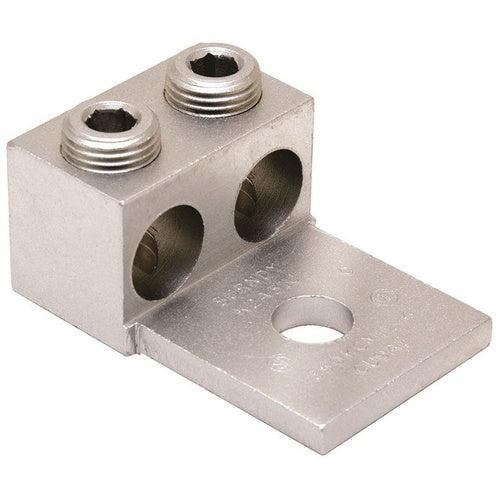

Burndy K2A36U (2)600 Copper/Aluminum Mechanical Lug

Overview

Burndy K2A36U (2)600 Copper/Aluminum Mechanical Lug

Product Specifications

• UPC: 78181060020
• Number Of Pad Holes: 1
• Pad Size: 1.75 Inch Length x 2.41 Inch Width x 0.44 Inch Thickness
• Stud Size: 1/2 Inch
• Overall Length: 3.2 Inch
• Approval: UL 468A/B, CSA
• Additional Information: RoHS Compliant; Overall Height 1.58 Inch; Temperature Rating 90 Deg C; Installation Torque 375 Inch-Pound; Number of Screw 2
• Catalog Number: K2A36U
• Model: K2A-U
• Type: Universal, Dual Rated
• Number Of Conductors: 2
• Minimum Conductor Size: 2 AWG Stranded
• Maximum Conductor Size: 600 KCMIL Stranded
• Conductor Material: Copper/Aluminum
• Material: Electro Tin Plated High Strength Aluminum Alloy
• Catalog Description: ALUMINUM UNIVERSAL TERMINAL, 2 CONDUCTOR, 1 HOLE, 2 AWG (STR)-600 KCMIL, 1/2" STUD, 2 SCREWS, AL/CU RATED, TIN PLATED.
• Category: Large Terminals & Connectors
• Full Technical Description: Universal, Dual Rated Type; Electro Tin Plated High Strength Aluminum Alloy Material; 3.2 Inch Overall Length; 2 AWG Stranded min. Conductor Size; 600 kcmil Stranded Max. Conductor Size; Copper/Aluminum Conductor Material; UL 468A/B, CSA Approval; 2 Conductor(S); 1/2 Inch Stud Size; 1.75 Inch Length X 2.41 Inch Width X 0.44 Inch Thickness Pad Size; 1 Pad Hole(S); RoHS Compliant; Overall Height 1.58 Inch; Temperature Rating 90 Deg C; Installation Torque 375 Inch-Pound; Number of Screw 2; K2A-U Model
• Made In Usa: Yes
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Sub Category: Mechanical Cable Lug
• Unspsc: 39121408
• UPC 12 Digit: 781810600207
• SKU Name: bur k2a36u
