Overview

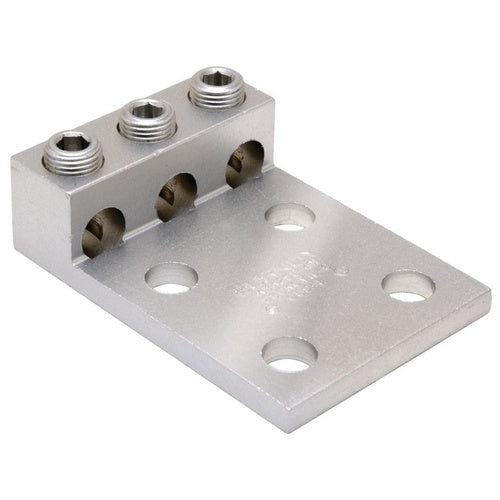

Burndy K3A29U4N 250 Aluminum/Copper 4-Hole Terminal

Product Specifications

• Catalog Description: ALUMINUM UNIVERSAL TERMINAL, 3 CONDUCTOR, 4 HOLE, 6 AWG (STR)-250 KCMIL, 1/2" STUD, 1.75" STUD HOLE SPACING, 3 SCREWS, AL/CU RATED, TIN PLATED
• Full Technical Description: Electro-Tin Plated Aluminum Alloy Material; 4 Inch Overall Length; 6 AWG Stranded min. Conductor Size; 250 kcmil Stranded Max. Conductor Size; Aluminum/Copper Conductor Material; UL 468-A, UL 468-B, CSA Approval; 3 Conductor(S); 1/2 Inch Stud Size; 3 Inch L X 3.02 Inch W X 0.31 Inch Thk Pad Size; 4 NEMA Pad Hole(S); Stud Hole Spacing Size 1.75 Inch; Installation Torque 275 lb-Inch; K3A-U Model
• Made In Usa: Yes
• Manufacturer: BURNDY PRODUCTS
• Sub Category: Mechanical Cable Lug
• Unspsc: 39121408
• UPC 12 Digit: 781810601129
• SKU Name: bur k3a29u4n
