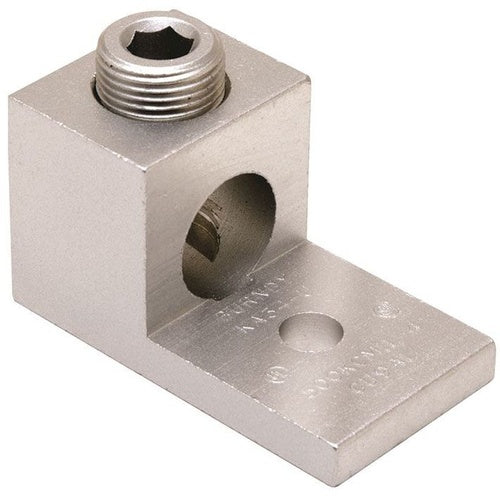

Burndy KA26U 2/0 Copper/Aluminum Mechanical Lug

Overview

Burndy KA26U 2/0 Copper/Aluminum Mechanical Lug

Product Specifications

• UPC: 78181037010
• Screw Type: Allen Head Bolt
• Material: Electro-Tin Plated Aluminum Alloy
• Number Of Pad Holes: 1
• Pad Size: 0.81 Inch Length x 0.64 Inch Width x 0.19 Inch Thickness
• Stud Size: 1/4 Inch
• Overall Length: 1.47 Inch
• Approval: UL 468A/B, CSA
• Additional Information: RoHS Compliant; Installation Torque 120 Inch-Pound; Temperature Rating 90 Deg C
• Catalog Number: KA26U
• Brand Name: Burndy
• Model: KA-U
• Type: Universal
• Number Of Conductors: 1
• Minimum Conductor Size: 6 AWG Stranded
• Maximum Conductor Size: 2/0 AWG Stranded
• Conductor Material: Copper/Aluminum
• Catalog Description: ALUMINUM UNIVERSAL TERMINAL, 1 HOLE, 6-2/0 AWG (STR), 1/4" STUD, 1 SCREW, AL/CU RATED, TIN PLATED.
• Category: Large Terminals & Connectors
• Full Technical Description: Universal Type; Electro-Tin Plated Aluminum Alloy Material; 1.47 Inch Overall Length; 6 AWG Stranded min. Conductor Size; 2/0 AWG Stranded Max. Conductor Size; Copper/Aluminum Conductor Material; UL 468A/B, CSA Approval; 1 Conductor(S); 1/4 Inch Stud Size; 0.81 Inch Length X 0.64 Inch Width X 0.19 Inch Thickness Pad Size; 1 Pad Hole(S); Allen Head Bolt Screw Type; RoHS Compliant; Installation Torque 120 Inch-Pound; Temperature Rating 90 Deg C; KA-U Model
• Manufacturer: BURNDY PRODUCTS
• Manufacturer Brand: Burndy Products
• Sub Category: Mechanical Cable Lug
• Unspsc: 39121408
• UPC 12 Digit: 781810370100
• SKU Name: bur ka26u

Resources

• Technical Drawing
• Technical Line Drawing
• Manufacturer Spec Sheet
