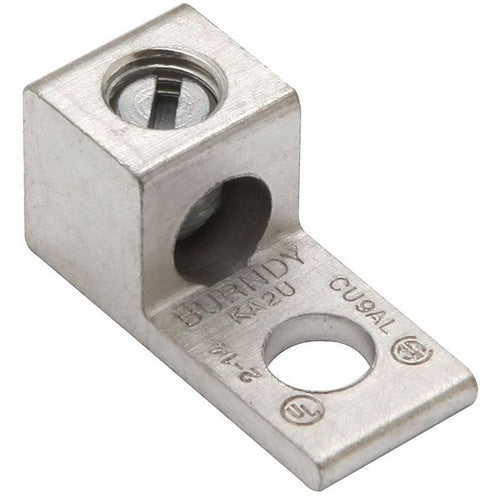

Burndy KA2U 2Str Copper/Aluminum Mechanical Lug

Overview

Burndy KA2U 2Str Copper/Aluminum Mechanical Lug

Product Specifications

• UPC: 78181037005
• Number Of Pad Holes: 1
• Pad Size: 0.63 Inch Length x 0.5 Inch Width x 0.1 Inch Thickness
• Stud Size: 1/4 Inch
• Overall Length: 1.16 Inch
• Approval: UL 468A/B, CSA
• Additional Information: RoHS Compliant; Overall Height 0.56 Inch; Temperature Rating 90 Deg C; Installation Torque 50 Inch-Pound; Number of Screw 1
• Catalog Number: KA2U
• Model: KA-U
• Type: Universal, Dual Rated
• Number Of Conductors: 1
• Minimum Conductor Size: 14 AWG Stranded
• Maximum Conductor Size: 2 AWG Stranded
• Conductor Material: Copper/Aluminum
• Material: Electro Tin Plated High Strength Aluminum Alloy
• Catalog Description: ALUMINUM UNIVERSAL TERMINAL, 1 HOLE, 14-2 AWG (STR), 1/4" STUD, 1 SCREW, AL/CU RATED, TIN PLATED.
• Category: Large Terminals & Connectors
• Full Technical Description: Universal, Dual Rated Type; Electro Tin Plated High Strength Aluminum Alloy Material; 1.16 Inch Overall Length; 14 AWG Stranded min. Conductor Size; 2 AWG Stranded Max. Conductor Size; Copper/Aluminum Conductor Material; UL 468A/B, CSA Approval; 1 Conductor(S); 1/4 Inch Stud Size; 0.63 Inch Length X 0.5 Inch Width X 0.1 Inch Thickness Pad Size; 1 Pad Hole(S); RoHS Compliant; Overall Height 0.56 Inch; Temperature Rating 90 Deg C; Installation Torque 50 Inch-Pound; Number of Screw 1; KA-U Model
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Sub Category: Mechanical Cable Lug
• Unspsc: 39121408
• UPC 12 Digit: 781810370056
• SKU Name: bur ka2u
