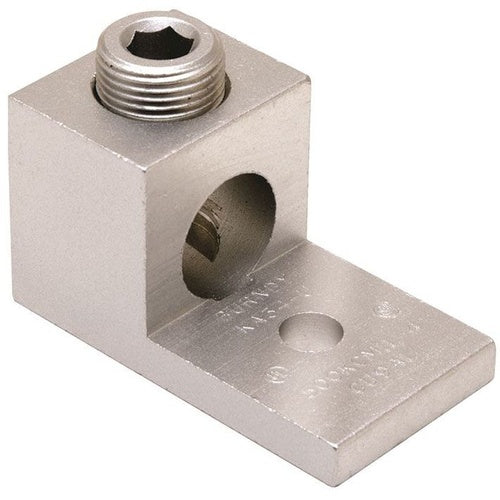

Burndy KA34U 500 Copper/Aluminum Mechanical Lug

Product Specifications

• UPC: 78181037024
• Screw Type: Allen Head Bolt
• Material: Electro-Tin Plated Aluminum Alloy
• Number Of Pad Holes: 1
• Pad Size: 1.5 Inch Length x 1.52 Inch Width x 0.31 Inch Thickness
• Stud Size: 3/8 Inch
• Overall Length: 2.81 Inch
• Approval: UL 468A/B, CSA
• Additional Information: RoHS Compliant; Installation Torque 500 Inch-Pound; Temperature Rating 90 Deg C
• Catalog Number: KA34U
• Brand Name: Burndy
• Model: KA-U
• Type: Universal
• Number Of Conductors: 1
• Minimum Conductor Size: 4 AWG Stranded
• Maximum Conductor Size: 500 KCMIL Stranded
• Conductor Material: Copper/Aluminum
• Catalog Description: ALUMINUM UNIVERSAL TERMINAL, 1 HOLE, 4 AWG (STR)-500 KCMIL, 3/8" STUD, 1 SCREW, AL/CU RATED, TIN PLATED.
• Category: Large Terminals & Connectors
• Full Technical Description: Universal Type; Electro-Tin Plated Aluminum Alloy Material; 2.81 Inch Overall Length; 4 AWG Stranded min. Conductor Size; 500 kcmil Stranded Max. Conductor Size; Copper/Aluminum Conductor Material; UL 468A/B, CSA Approval; 1 Conductor(S); 3/8 Inch Stud Size; 1.5 Inch Length X 1.52 Inch Width X 0.31 Inch Thickness Pad Size; 1 Pad Hole(S); Allen Head Bolt Screw Type; RoHS Compliant; Installation Torque 500 Inch-Pound; Temperature Rating 90 Deg C; KA-U Model
• Manufacturer: BURNDY PRODUCTS
• Manufacturer Brand: Burndy Products
• Sub Category: Mechanical Cable Lug
• Unspsc: 39121408
• UPC 12 Digit: 781810370247
• SKU Name: bur ka34u
