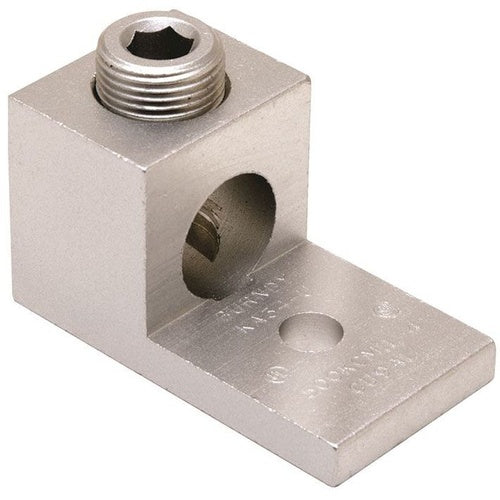

Burndy KA36U Copper/Aluminum Mechanical Lug

Overview

Burndy KA36U Copper/Aluminum Mechanical Lug

Product Specifications

• UPC: 78181037025
• Number Of Pad Holes: 1
• Pad Size: 1.72 Inch Length x 1.5 Inch Width x 0.44 Inch Thickness
• Stud Size: 3/8 Inch
• Overall Length: 3.19 Inch
• Approval: UL 468A/B, CSA
• Additional Information: RoHS Compliant; Overall Height 1.58 Inch; Temperature Rating 90 Deg C; Installation Torque 500 Inch-Pound; Number of Screw 1
• Catalog Number: KA36U
• Model: KA-U
• Type: Universal, Dual Rated
• Number Of Conductors: 1
• Minimum Conductor Size: 2 AWG Stranded
• Maximum Conductor Size: 600 KCMIL Stranded
• Conductor Material: Copper/Aluminum
• Material: Electro Tin Plated High Strength Aluminum Alloy
• Catalog Description: ALUMINUM UNIVERSAL TERMINAL, 1 HOLE, 2 AWG (STR)-600 KCMIL, 3/8" STUD, 1 SCREW, AL/CU RATED, TIN PLATED.
• Category: Large Terminals & Connectors
• Full Technical Description: Universal, Dual Rated Type; Electro Tin Plated High Strength Aluminum Alloy Material; 3.19 Inch Overall Length; 2 AWG Stranded min. Conductor Size; 600 kcmil Stranded Max. Conductor Size; Copper/Aluminum Conductor Material; UL 468A/B, CSA Approval; 1 Conductor(S); 3/8 Inch Stud Size; 1.72 Inch Length X 1.5 Inch Width X 0.44 Inch Thickness Pad Size; 1 Pad Hole(S); RoHS Compliant; Overall Height 1.58 Inch; Temperature Rating 90 Deg C; Installation Torque 500 Inch-Pound; Number of Screw 1; KA-U Model
• Made In Usa: Yes
• Manufacturer: BURNDY PRODUCTS
• Manufacturer Brand: Burndy Products
• Sub Category: Mechanical Cable Lug
• Unspsc: 39121408
• UPC 12 Digit: 781810370254
• SKU Name: bur ka36u
