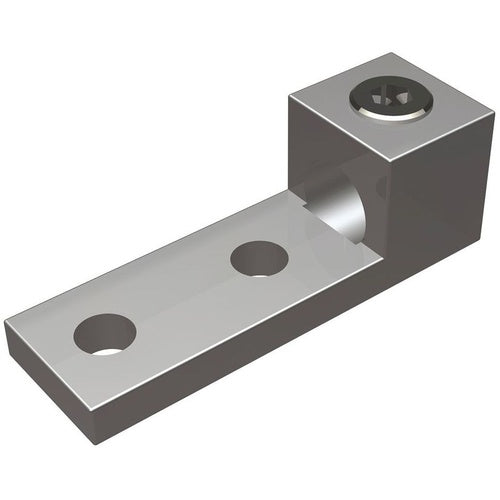

Burndy KA36U-2N 600 Aluminum/Copper 2-Hole Terminal

Overview

Burndy KA36U-2N 600 Aluminum/Copper 2-Hole Terminal

Product Specifications

• UPC: 78181037040
• Screw Type: Allen Head Bolt
• Material: Electro-Tin Plated Aluminum Alloy
• Number Of Pad Holes: 2
• Pad Size: 3.22 Inch Length x 1.52 Inch Width x 0.44 Inch Thickness
• Stud Size: 1/2 Inch
• Overall Length: 4.69 Inch
• Approval: UL 468A/B, CSA
• Additional Information: RoHS Compliant; Installation Torque 500 Inch-Pound; Temperature Rating 90 Deg C
• Catalog Number: KA36U2N
• Brand Name: Burndy
• Model: KA-U
• Type: Universal
• Number Of Conductors: 1
• Minimum Conductor Size: 2 AWG Stranded
• Maximum Conductor Size: 600 KCMIL Stranded
• Conductor Material: Copper/Aluminum
• Catalog Description: ALUMINUM UNIVERSAL TERMINAL, 2 HOLE, 2 AWG (STR)-600 KCMIL, 1/2" STUD, 1.75" STUD HOLE SPACING, 1 SCREW, AL/CU RATED, TIN PLATED.
• Category: Large Terminals & Connectors
• Full Technical Description: Universal Type; Electro-Tin Plated Aluminum Alloy Material; 4.69 Inch Overall Length; 2 AWG Stranded min. Conductor Size; 600 kcmil Stranded Max. Conductor Size; Copper/Aluminum Conductor Material; UL 468A/B, CSA Approval; 1 Conductor(S); 1/2 Inch Stud Size; 3.22 Inch Length X 1.52 Inch Width X 0.44 Inch Thickness Pad Size; 2 Pad Hole(S); Allen Head Bolt Screw Type; RoHS Compliant; Installation Torque 500 Inch-Pound; Temperature Rating 90 Deg C; KA-U Model
• Made In Usa: Yes
• Manufacturer: BURNDY PRODUCTS
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Mechanical Cable Lug
• Unspsc: 39121408
• UPC 12 Digit: 781810370407
• SKU Name: bur ka36u2n

Resources

• Technical Drawing
• Technical Line Drawing
• Manufacturer Spec Sheet
