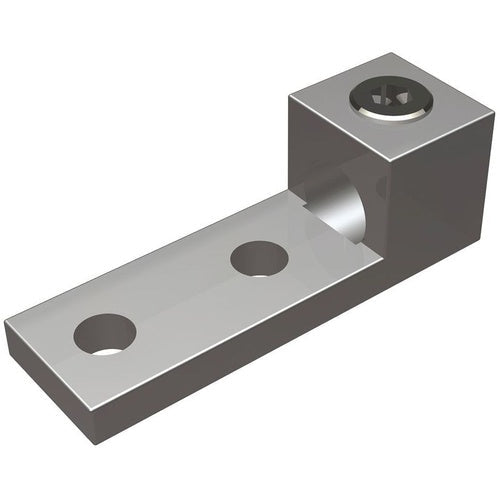

Burndy KA40U-2N 800 Aluminum/Copper 2-Hole Terminal

Product Specifications

• UPC: 78181037045
• Pad Size: 3.03 Inch L x 1.77 Inch W x 0.5 Inch Thk
• Stud Size: 1/2 Inch
• Overall Length: 4.75 Inch
• Approval: UL 468A/486B, CSA
• Additional Information: RoHS Compliant; Installation Torque 500 Lb-Inch; Stud Hole Spacing Size 1.75 Inch
• Catalog Number: KA40U2N
• Model: Type KA-U
• Number Of Conductors: 1
• Minimum Conductor Size: 300 KCMIL Aluminum, 300 KCMIL Stranded Copper
• Maximum Conductor Size: 800 KCMIL Aluminum, 800 KCMIL Stranded Copper
• Conductor Material: Aluminum/Copper
• Material: Electro Tin Plated Aluminum Alloy
• Number Of Pad Holes: 2 NEMA
• Catalog Description: ALUMINUM UNIVERSAL TERMINAL, 2 HOLE, 300-800 KCMIL, 1/2" STUD, 1.75" STUD HOLE SPACING, 1 SCREW, AL/CU RATED, TIN PLATED.
• Category: Large Terminals & Connectors
• Full Technical Description: Electro Tin Plated Aluminum Alloy Material; 4.75 Inch Overall Length; 300 kcmil Aluminum, 300 kcmil Stranded Copper min. Conductor Size; 800 kcmil Aluminum, 800 kcmil Stranded Copper Max. Conductor Size; Aluminum/Copper Conductor Material; UL 468A/486B, CSA Approval; 1 Conductor(S); 1/2 Inch Stud Size; 3.03 Inch L X 1.77 Inch W X 0.5 Inch Thk Pad Size; 2 NEMA Pad Hole(S); RoHS Compliant; Installation Torque 500 lb-Inch; Stud Hole Spacing Size 1.75 Inch; TYPE KA-U Model
• Made In Usa: Yes
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Mechanical Cable Lug
• Unspsc: 39121408
• UPC 12 Digit: 781810370452
• SKU Name: bur ka40u2n
