Overview

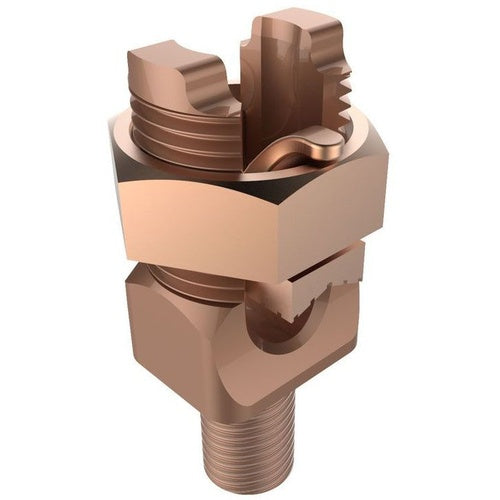

Burndy KC28 4/0 Split Bolt Connector

Product Specifications

• UPC: 78181025625
• Nut Hex Size: 1-1/2 Inch
• Material: Cast Copper Alloy
• Approval: UL, CSA
• Used On: Cable to Flat Surface/Steel Structure/Fence Post/Transformer
• Additional Information: RoHS Compliant; Height 1-3/4 Inch
• Catalog Number: KC28
• Brand Name: Burndy
• Model: KC
• Conductor Size: 1 to 4/0 AWG Solid/Stranded (Copper)
• Number Of Conductors: 1
• Stud Diameter: 5/8 Inch-11 TPI
• Stud Length: 3/4 Inch
• Body Hex Size: 1-3/16 Inch
• Catalog Description: MECHANICAL GROUNDING CONNECTOR, CABLE TO FLAT, 1-4/0 AWG, 5/8" STUD, 1-3/4" HEIGHT, B=3/4"
• Category: Large Terminals & Connectors
• Full Technical Description: Cast Copper Alloy Material; Cable to Flat Surface/Steel Structure/Fence Post/Transformer Used on; 3/4 Inch Stud Length; UL, CSA Approval; 1 Conductor(S); 1 to 4/0 AWG Solid/Stranded (Copper) Conductor Size; 5/8 Inch-11 TPI Stud Diameter; 1-3/16 Inch Body Hex Size; 1-1/2 Inch Nut Hex Size; Servit POST[TM] Brand; RoHS Compliant; Height 1-3/4 Inch; KC Model
• Made In Usa: Yes
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Bar To Flat Surface Post
• Unspsc: 39121408
• UPC 12 Digit: 781810256251
• SKU Name: bur kc28
