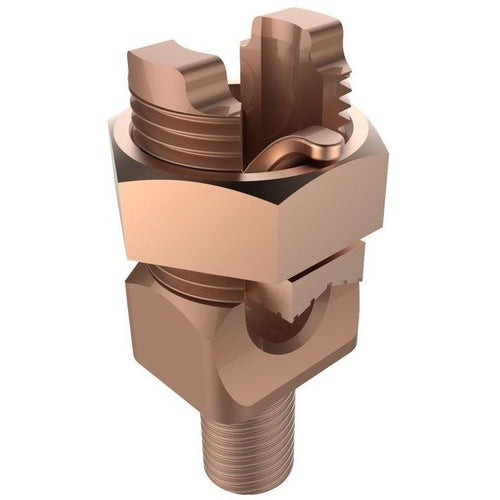

Burndy KC28B1 4/0 Split Bolt Connector

Overview

Burndy KC28B1 4/0 Split Bolt Connector

Product Specifications

• UPC: 78181025640
• Nut Hex Size: 1-1/2 Inch
• Material: Leaded Bronze Alloy
• Approval: UL, CSA
• Used On: Cable to Flat Surface, Cable to Steel Structure/Fence Post/Transformer
• Additional Information: ROHS COMPATIBLE
• Catalog Number: KC28B1
• Brand Name: SERVIT POST[TM]
• Model: KC
• Conductor Size: 1 to 4/0 AWG Solid/Stranded
• Number Of Conductors: 1
• Stud Diameter: 5/8 Inch-11 TPI
• Stud Length: 1.25 Inch
• Body Hex Size: 1-3/16 Inch
• Catalog Description: MECHANICAL GROUNDING CONNECTOR, CABLE TO FLAT, 1-4/0 AWG, 5/8" STUD, 1-3/4" HEIGHT, B=1-1/4"
• Category: Large Terminals & Connectors
• Full Technical Description: Leaded Bronze Alloy Material; Cable to Flat Surface, Cable to Steel Structure/Fence Post/Transformer Used on; 1.25 Inch Stud Length; UL, CSA Approval; 1 Conductor(S); 1 to 4/0 AWG Solid/Stranded Conductor Size; 5/8 Inch-11 TPI Stud Diameter; 1-3/16 Inch Body Hex Size; 1-1/2 Inch Nut Hex Size; Servit POST[TM] Brand; RoHS Compatible; KC Model
• Made In Usa: Yes
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Bar To Flat Surface Post
• Unspsc: 39121408
• UPC 12 Digit: 781810256404
• SKU Name: bur kc28b1
