Overview

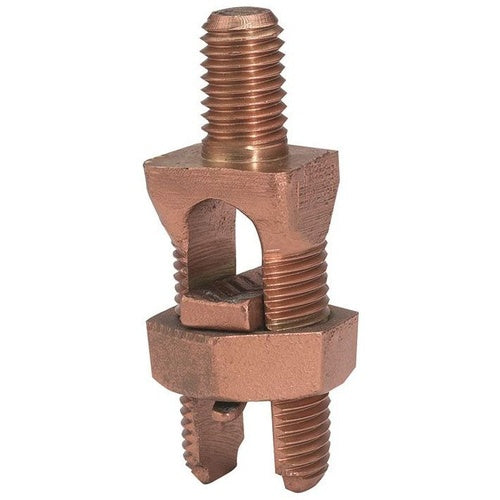

Burndy KC34B1 500 Post Split Bolt

Product Specifications

• Catalog Description: MECHANICAL GROUNDING CONNECTOR, CABLE TO FLAT, 3/0 AWG - 500 AWG (STR), 3/4" STUD.
• Full Technical Description: Leaded Bronze Alloy Material; Cable to Flat Surface/Steel Structure/Fence Post/Transformer Used on; 1-1/2 Inch Stud Length; UL, CSA Approval; 1 Conductor(S); 3/0 AWG to 500 kcmil Stranded (Copper) Conductor Size; 3/4 Inch-10 TPI Stud Diameter; 1-5/8 Inch Body Hex Size; 2 Inch Nut Hex Size; Servit POST[TM] Brand; RoHS Compatible; Height 2-3/8 Inch; KC Model
• Manufacturer: BURNDY PRODUCTS
• Sub Category: Bar To Flat Surface Post
• Unspsc: 39121408
• UPC 12 Digit: 781810256756
• SKU Name: bur kc34b1
