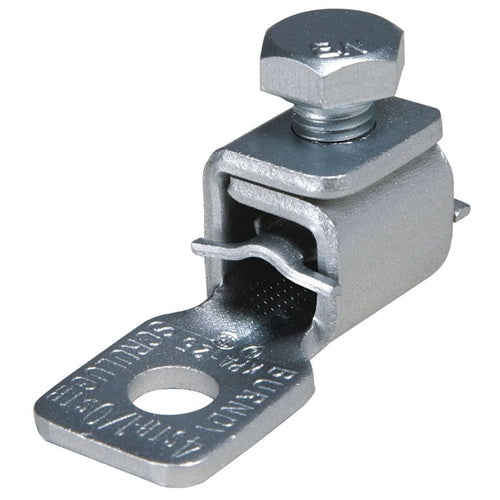

Burndy KPA28 4/0Str Copper 1-Hole Terminal Lug

Product Specifications

• UPC: 78181035590
• Screw Type: Hex Head
• Material: Tin Plated Copper Alloy
• Number Of Pad Holes: 1
• Pad Size: 1.12 Inch L x 0.97 Inch W x 0.13 Inch Thk
• Stud Size: 3/8 Inch
• Overall Length: 2.4 Inch
• Approval: UL 468-A, UL 468-B, CSA
• Additional Information: RoHS Compatible; Installation Torque 250 Lb-Inch
• Catalog Number: KPA28
• Brand Name: SCRULUG[TM]
• Model: KPA
• Type: 1-Piece
• Minimum Conductor Size: 1/0 AWG Stranded
• Maximum Conductor Size: 4/0 AWG Stranded
• Conductor Material: Copper
• Pad Type: Equipment
• Catalog Description: COPPER TERMINAL WITH PRESSURE BAR, 1-HOLE, 3/8" STUD, 1/0-4/0 AWG STR, TIN PLATED
• Category: Large Terminals & Connectors
• Full Technical Description: 1-Piece Type; Tin Plated Copper Alloy Material; 2.4 Inch Overall Length; 1/0 AWG Stranded min. Conductor Size; 4/0 AWG Stranded Max. Conductor Size; Copper Conductor Material; UL 468-A, UL 468-B, CSA Approval; 3/8 Inch Stud Size; 1.12 Inch L X 0.97 Inch W X 0.13 Inch Thk Pad Size; 1 Pad Hole(S); Equipment Pad Type; Hex Head Screw Type; SCRULUG[TM] Brand; RoHS Compatible; Installation Torque 250 lb-Inch; KPA Model
• Made In Usa: Yes
• Manufacturer: BURNDY PRODUCTS
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Mechanical Cable Lug
• Unspsc: 39121408
• UPC 12 Digit: 781810355909
• SKU Name: bur kpa28
