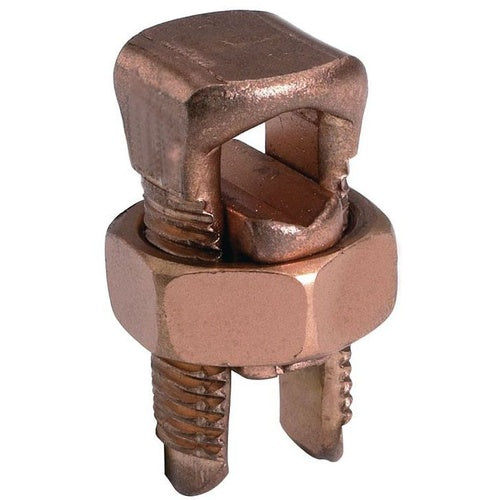

Burndy KS-17 6Sol Split Bolt Connector

Product Specifications

• UPC: 78181001150
• Maximum Tap Conductor Size: 6 AWG Solid (Copper), 6 AWG Solid, (3) 12 AWG Stranded (Copperweld), 8 AWG Type A (Copperweld), 9-1/2 AWG Type D (Copperweld)
• Material: High Copper Alloy
• Approval: UL, CSA
• Additional Information: RoHS Compliant; Torque Rating 165 Inch-Pound; Cross Flat 0.63 Inch
• Catalog Number: KS17
• Brand Name: SERVIT[R]
• Model: KS
• Installation: Split Bolt
• Conductor Material: Copper/Copperweld
• Minimum Run Conductor Size: 8 AWG Stranded (Copper)
• Maximum Run Conductor Size: 6 AWG Solid (Copper), 6 AWG Solid, (3) 12 AWG Stranded (Copperweld), 8 AWG Type A (Copperweld), 9-1/2 AWG Type D (Copperweld)
• Minimum Tap Conductor Size: 14 AWG Stranded (Copper)
• Catalog Description: COPPER SPLIT BOLT, CU: 8 AWG (STR)-6 AWG (SOL) (RUN & TAP),LENGTH:1.14.
• Category: Large Terminals & Connectors
• Full Technical Description: High Copper Alloy Material; 8 AWG Stranded (Copper) min. Run Conductor Size; 6 AWG Solid (Copper), 6 AWG Solid, (3) 12 AWG Stranded (Copperweld), 8 AWG Type A (Copperweld), 9-1/2 AWG Type D (Copperweld) Max. Run Conductor Size; 14 AWG Stranded (Copper) min. Tap Conductor Size; 6 AWG Solid (Copper), 6 AWG Solid, (3) 12 AWG Stranded (Copperweld), 8 AWG Type A (Copperweld), 9-1/2 AWG Type D (Copperweld) Max. Tap Conductor Size; Split Bolt Installation; Copper/Copperweld Conductor Material; UL, CSA Approval; Servit [R] Brand; RoHS Compliant; Torque Rating 165 Inch-Pound; Cross Flat 0.63 Inch; KS Model
• Made In Usa: Yes
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Sub Category: Mechanical Single Cable Tap
• Unspsc: 39121408
• UPC 12 Digit: 781810011508
• SKU Name: bur ks17
