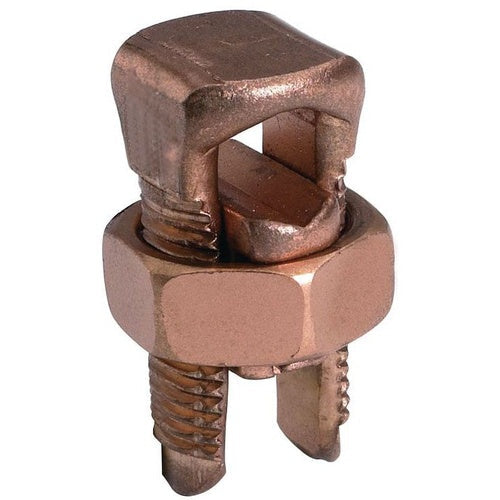

Burndy KS20-3 5Str Split Bolt Connector

Overview

Burndy KS20-3 5Str Split Bolt Connector

Product Specifications

• UPC: 78181002200
• Material: Copper Alloy
• Additional Information: RoHS Compatible; Size 1.17 Inch L x 0.78 Inch W; Installation Torque 165 Lb-Inch; Cross Flat 0.68 Inch
• Catalog Number: KS203
• Brand Name: SERVIT[R]
• Model: KS-3
• Installation: Split Bolt
• Conductor Material: Copper/Copperweld
• Maximum Run Conductor Size: 14 AWG Stranded (Copper), 4 AWG Solid, (3) 10 AWG Stranded, 6 A, 8 D (Copperweld)
• Minimum Tap Conductor Size: 14 AWG Stranded (Copper)
• Maximum Tap Conductor Size: 4 AWG Solid, (3) 10 AWG Stranded, 6 A/8 D (Copperweld)
• Catalog Description: COPPER SPLIT BOLT, CU: 8 AWG (STR)-4 AWG (SOL) (RUN & TAP).
• Category: Large Terminals & Connectors
• Full Technical Description: Copper Alloy Material; 14 AWG Stranded (Copper), 4 AWG Solid, (3) 10 AWG Stranded, 6 A, 8 D (Copperweld) Max. Run Conductor Size; 14 AWG Stranded (Copper) min. Tap Conductor Size; 4 AWG Solid, (3) 10 AWG Stranded, 6 A/8 D (Copperweld) Max. Tap Conductor Size; Split Bolt Installation; Copper/Copperweld Conductor Material; SERVIT[R] Brand; RoHS Compatible; Size 1.17 Inch L X 0.78 Inch W; Installation Torque 165 lb-Inch; Cross Flat 0.68 Inch; KS-3 Model
• Made In Usa: Yes
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Mechanical Single Cable Tap
• Unspsc: 39121408
• UPC 12 Digit: 781810022009
• SKU Name: bur ks203
