Overview

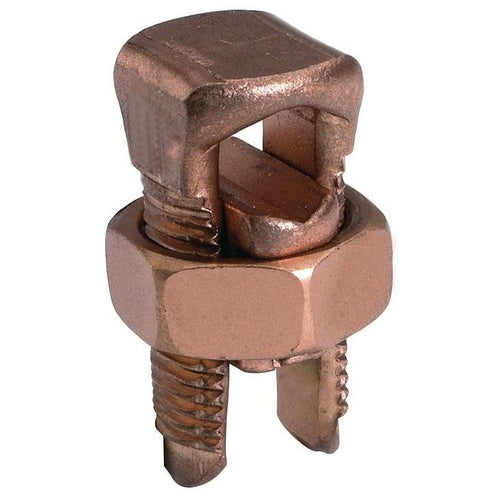

Burndy KS-27 3/0Str Copper Split Bolt

Product Specifications

• UPC: 78181001355
• Maximum Tap Conductor Size: 3/0 AWG Stranded (Copper)
• Material: High Copper Alloy
• Approval: UL, CSA
• Additional Information: RoHS Compliant; Overall Dimension 1 Inch Length x 1.17 Inch Width; Installation Torque 500 Inch-Pound; Cross Flat 1.36 Inch
• Catalog Number: KS27
• Brand Name: Burndy
• Model: KS
• Installation: Split Bolt
• Conductor Material: Copper/Copperweld
• Minimum Run Conductor Size: 1 AWG Stranded (Copper)
• Maximum Run Conductor Size: 3/0 AWG Stranded (Copper)
• Minimum Tap Conductor Size: 8 AWG Solid (Copper)
• Catalog Description: COPPER SPLIT BOLT, CU: 1 AWG-3/0 AWG (STR) (RUN & TAP).
• Category: Large Terminals & Connectors
• Full Technical Description: High Copper Alloy Material; 1 AWG Stranded (Copper) min. Run Conductor Size; 3/0 AWG Stranded (Copper) Max. Run Conductor Size; 8 AWG Solid (Copper) min. Tap Conductor Size; 3/0 AWG Stranded (Copper) Max. Tap Conductor Size; Split Bolt Installation; Copper/Copperweld Conductor Material; UL, CSA Approval; Servit [R] Brand; RoHS Compliant; Overall Dimension 1 Inch Length X 1.17 Inch Width; Installation Torque 500 Inch-Pound; Cross Flat 1.36 Inch; KS Model
• Made In Usa: Yes
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Sub Category: Mechanical Single Cable Tap
• Unspsc: 39121408
• UPC 12 Digit: 781810013557
• SKU Name: bur ks27
