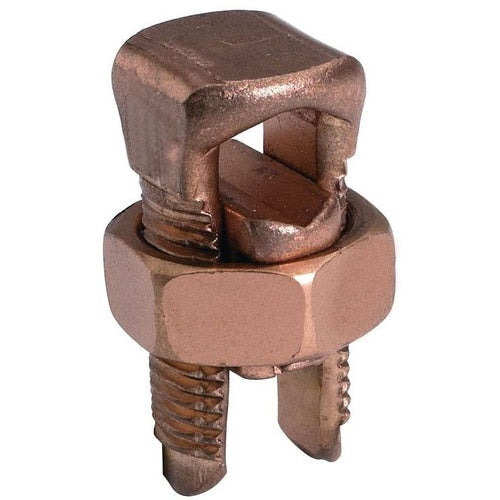

Burndy KS-29 250 Copper Split Bolt

Overview

Burndy KS-29 250 Copper Split Bolt

Product Specifications

• UPC: 78181001380
• Maximum Tap Conductor Size: 250 KCMIL (Copper), 4/0 AWG Solid, (7) 5 AWG Stranded (Copperweld)
• Material: High Copper Alloy
• Approval: UL, CSA
• Additional Information: RoHS Compliant; Torque Rating 650 Inch-Pound; Cross Flat 1.36 Inch
• Catalog Number: KS29
• Brand Name: SERVIT[R]
• Model: KS
• Installation: Split Bolt
• Conductor Material: Copper/Copperweld
• Minimum Run Conductor Size: 1 AWG Stranded (Copper)
• Maximum Run Conductor Size: 250 KCMIL (Copper), 4/0 AWG Solid, (7) 5 AWG Stranded (Copperweld)
• Minimum Tap Conductor Size: 8 AWG Stranded (Copper)
• Catalog Description: COPPER SPLIT BOLT, CU: 1 AWG (STR)-250 KCMIL (RUN & TAP).
• Category: Large Terminals & Connectors
• Full Technical Description: High Copper Alloy Material; 1 AWG Stranded (Copper) min. Run Conductor Size; 250 kcmil (Copper), 4/0 AWG Solid, (7) 5 AWG Stranded (Copperweld) Max. Run Conductor Size; 8 AWG Stranded (Copper) min. Tap Conductor Size; 250 kcmil (Copper), 4/0 AWG Solid, (7) 5 AWG Stranded (Copperweld) Max. Tap Conductor Size; Split Bolt Installation; Copper/Copperweld Conductor Material; UL, CSA Approval; Servit [R] Brand; RoHS Compliant; Torque Rating 650 Inch-Pound; Cross Flat 1.36 Inch; KS Model
• Made In Usa: Yes
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Sub Category: Mechanical Single Cable Tap
• Unspsc: 39121408
• UPC 12 Digit: 781810013809
• SKU Name: bur ks29
