Product information
Overview

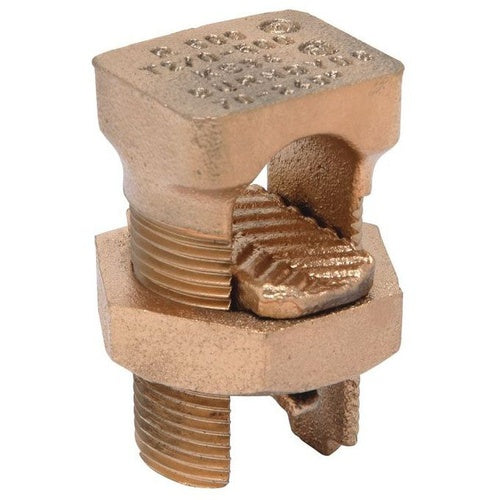

Burndy KS-34 500 Copper Split Bolt
Product Specifications
- UPC: 78181001450
- Maximum Tap Conductor Size: 500 KCMIL (Copper), (19) 6 AWG Stranded (Copperweld)
- Material: High Copper Alloy
- Approval: UL, CSA
- Additional Information: RoHS Compliant; Torque Rating 825 Inch-Pound; Cross Flat 1.82 Inch
- Catalog Number: KS34
- Brand Name: SERVIT[R]
- Model: KS
- Installation: Split Bolt
- Conductor Material: Copper/Copperweld
- Minimum Run Conductor Size: 2/0 AWG Stranded (Copper)
- Maximum Run Conductor Size: 500 KCMIL (Copper), (19) 6 AWG Stranded (Copperweld)
- Minimum Tap Conductor Size: 2/0 AWG Stranded (Copper)
- Catalog Description: COPPER SPLIT BOLT, CU: 2/0 AWG (STR)-500 KCMIL (RUN & TAP).
- Category: Large Terminals & Connectors
- Full Technical Description: High Copper Alloy Material; 2/0 AWG Stranded (Copper) min. Run Conductor Size; 500 kcmil (Copper), (19) 6 AWG Stranded (Copperweld) Max. Run Conductor Size; 2/0 AWG Stranded (Copper) min. Tap Conductor Size; 500 kcmil (Copper), (19) 6 AWG Stranded (Copperweld) Max. Tap Conductor Size; Split Bolt Installation; Copper/Copperweld Conductor Material; UL, CSA Approval; Servit [R] Brand; RoHS Compliant; Torque Rating 825 Inch-Pound; Cross Flat 1.82 Inch; KS Model
- Made In Usa: Yes
- Manufacturer: Burndy Products
- Manufacturer Brand: Burndy Products
- Sub Category: Mechanical Single Cable Tap
- Unspsc: 39121408
- UPC 12 Digit: 781810014509
- SKU Name: bur ks34
