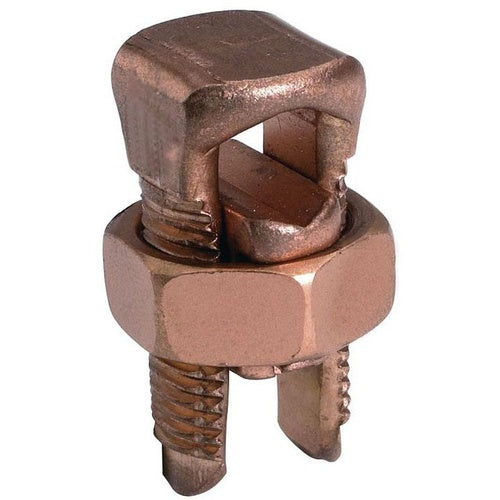

Burndy KS-39 Copper Split Bolt

Overview

Burndy KS-39 Copper Split Bolt

Product Specifications

• UPC: 78181001475
• Maximum Tap Conductor Size: 750 KCMIL (Copper), (19) 5 AWG Stranded (Copperweld)
• Material: High Copper Alloy
• Approval: UL, CSA
• Additional Information: RoHS Compliant; Torque Rating 1000 Inch-Pound; Cross Flat 2.31 Inch
• Catalog Number: KS39
• Brand Name: SERVIT[R]
• Model: KS
• Installation: Split Bolt
• Conductor Material: Copper/Copperweld
• Minimum Run Conductor Size: 4/0 AWG Stranded (Copper)
• Maximum Run Conductor Size: 750 KCMIL (Copper), (19) 5 AWG Stranded (Copperweld)
• Minimum Tap Conductor Size: 4/0 AWG Stranded (Copper)
• Catalog Description: COPPER SPLIT BOLT, CU: 4/0 AWG (STR)-750 KCMIL (RUN & TAP).
• Category: Large Terminals & Connectors
• Full Technical Description: High Copper Alloy Material; 4/0 AWG Stranded (Copper) min. Run Conductor Size; 750 kcmil (Copper), (19) 5 AWG Stranded (Copperweld) Max. Run Conductor Size; 4/0 AWG Stranded (Copper) min. Tap Conductor Size; 750 kcmil (Copper), (19) 5 AWG Stranded (Copperweld) Max. Tap Conductor Size; Split Bolt Installation; Copper/Copperweld Conductor Material; UL, CSA Approval; Servit [R] Brand; RoHS Compliant; Torque Rating 1000 Inch-Pound; Cross Flat 2.31 Inch; KS Model
• Made In Usa: Yes
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Mechanical Single Cable Tap
• Unspsc: 39121408
• UPC 12 Digit: 781810014752
• SKU Name: bur ks39
