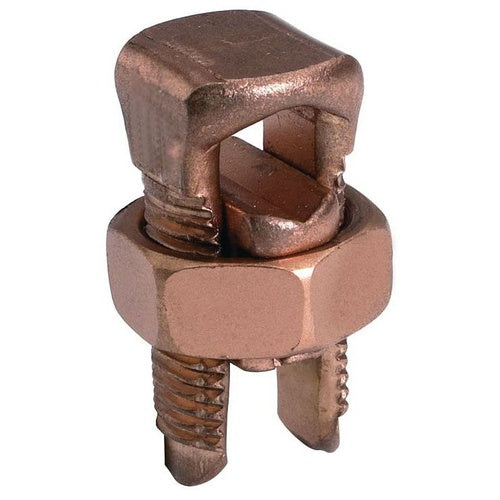

Burndy KS44 1000Mcm Split Bolt Connector

Overview

Burndy KS44 1000Mcm Split Bolt Connector

Product Specifications

• UPC: 78181001500
• Maximum Tap Conductor Size: 1000 KCMIL (Copper)
• Material: Copper Alloy
• Approval: UL, CSA
• Additional Information: RoHS Compatible; Size 2.10 Inch L x 2.19 Inch W; Installation Torque 1100 Lb
• Catalog Number: KS44
• Brand Name: SERVIT[R]
• Model: KS
• Installation: Split Bolt
• Conductor Material: Copper
• Minimum Run Conductor Size: 300 KCMIL Stranded (Copper)
• Maximum Run Conductor Size: 1000 KCMIL Stranded (Copper)
• Minimum Tap Conductor Size: 4/0 AWG Stranded (Copper)
• Catalog Description: COPPER SPLIT BOLT, CU: 300-1000 KCMIL (RUN & TAP).
• Category: Large Terminals & Connectors
• Full Technical Description: Copper Alloy Material; 300 kcmil Stranded (Copper) min. Run Conductor Size; 1000 kcmil Stranded (Copper) Max. Run Conductor Size; 4/0 AWG Stranded (Copper) min. Tap Conductor Size; 1000 kcmil (Copper) Max. Tap Conductor Size; Split Bolt Installation; Copper Conductor Material; UL, CSA Approval; SERVIT[R] Brand; RoHS Compatible; Size 2.10 Inch L X 2.19 Inch W; Installation Torque 1100 lb; KS Model
• Made In Usa: Yes
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Mechanical Single Cable Tap
• Unspsc: 39121408
• UPC 12 Digit: 781810015001
• SKU Name: bur ks44
