Overview

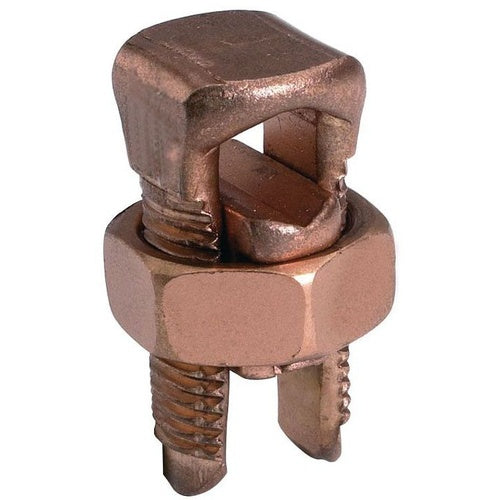

Burndy KS-90 10Str Copper Split Bolt

Product Specifications

• UPC: 78181001525
• Maximum Tap Conductor Size: 10 AWG Stranded (Copper), 10 AWG Solid (Copperweld)
• Material: Copper
• Approval: UL, CSA
• Catalog Number: KS90
• Brand Name: SERVIT[R]
• Model: KS
• Installation: Split Bolt
• Conductor Material: Copper/Copperweld
• Minimum Run Conductor Size: 12 AWG Copper
• Maximum Run Conductor Size: 10 AWG Stranded (Copper), 10 AWG Solid (Copperweld)
• Minimum Tap Conductor Size: 16 AWG Stranded Copper
• Catalog Description: COPPER SPLIT BOLT, CU: 12-10 AWG (STR) (RUN & TAP).
• Category: Large Terminals & Connectors
• Full Technical Description: Copper Material; 12 AWG Copper min. Run Conductor Size; 10 AWG Stranded (Copper), 10 AWG Solid (Copperweld) Max. Run Conductor Size; 16 AWG Stranded Copper min. Tap Conductor Size; 10 AWG Stranded (Copper), 10 AWG Solid (Copperweld) Max. Tap Conductor Size; Split Bolt Installation; Copper/Copperweld Conductor Material; UL, CSA Approval; SERVIT[R] Brand; KS Model
• Made In Usa: Yes
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Mechanical Single Cable Tap
• Unspsc: 39121408
• UPC 12 Digit: 781810015254
• SKU Name: bur ks90
