Overview

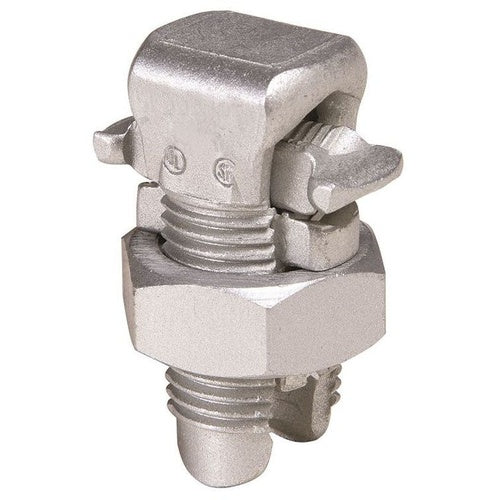

Burndy KSA1/0 Str Split Bolt Connector

Product Specifications

• UPC: 78181015300
• Maximum Tap Conductor Size: 1/0 AWG (Aluminum/Copper/Solid)
• Material: Tin Plated Aluminum Alloy
• Approval: UL 486B, CSA
• Additional Information: RoHS Compliant; Temperature Rating 90 Deg C; Size 1.33 Inch L x 0.75 Inch W x 0.85 Inch H; Stud/Bolt Size 3/4 Inch; Installation Torque 385 Lb-Inch
• Catalog Number: KSA1/0
• Brand Name: SERVIT[R]
• Model: Type KSA
• Installation: Split Bolt
• Conductor Material: Aluminum/Copper
• Minimum Run Conductor Size: 2 AWG (Aluminum), 2 AWG Stranded (Copper)
• Maximum Run Conductor Size: 1/0 AWG (Aluminum), 1/0 AWG Stranded (Copper)
• Minimum Tap Conductor Size: 8 AWG (Aluminum/Copper/Solid)
• Catalog Description: ALUMINUM SPLIT BOLT FOR AL/AL, AL/CU, OR CU/CU CONDUCTORS. MAX RUN TO MIN TAP: 1/0 STR-#8 SOLID, UL486B LISTED
• Category: Large Terminals & Connectors
• Full Technical Description: Tin Plated Aluminum Alloy Material; 2 AWG (Aluminum), 2 AWG Stranded (Copper) min. Run Conductor Size; 1/0 AWG (Aluminum), 1/0 AWG Stranded (Copper) Max. Run Conductor Size; 8 AWG (Aluminum/Copper/Solid) min. Tap Conductor Size; 1/0 AWG (Aluminum/Copper/Solid) Max. Tap Conductor Size; Split Bolt Installation; Aluminum/Copper Conductor Material; UL 486B, CSA Approval; Servit [R] Brand; RoHS Compliant; Temperature Rating 90 Deg C; Size 1.33 Inch L X 0.75 Inch W X 0.85 Inch H; Stud/Bolt Size 3/4 Inch; Installation Torque 385 lb-Inch; TYPE KSA Model
• Made In Usa: Yes
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Mechanical Single Cable Tap
• Unspsc: 39121408
• UPC 12 Digit: 781810153000
• SKU Name: bur ksa1/0
