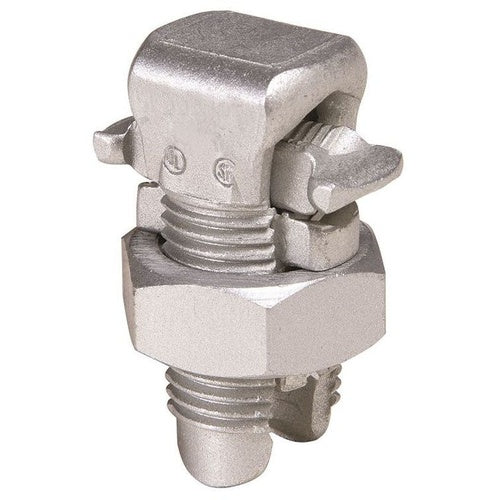

Burndy KSA350 Mcm Split Bolt Connector

Overview

Burndy KSA350 Mcm Split Bolt Connector

Product Specifications

• UPC: 78181018352
• Maximum Tap Conductor Size: 350 KCMIL
• Material: Tin Plated Aluminum
• Approval: UL, CSA
• Additional Information: ROHS COMPATIBLE; SIZE 2.18 INCH L X 1.5 INCH H X 1.5 INCH H; STUD/BOLT SIZE 1 3/8 INCH; INSTALLATION TORQUE 650 LB-INCH; TEMPERATURE RATING 90 DEG C
• Catalog Number: KSA350
• Brand Name: SERVIT[R], TRITAP[TM]
• Model: KSA
• Installation: Split Bolt
• Conductor Material: Aluminum/Copper
• Minimum Run Conductor Size: 1/0 AWG Stranded Compact
• Maximum Run Conductor Size: 350 KCMIL
• Minimum Tap Conductor Size: 4 AWG Stranded
• Catalog Description: ALUMINUM SPLIT BOLT FOR AL/AL, AL/CU, OR CU/CU CONDUCTORS. MAX RUN TO MIN TAP: 350 KCMIL-#4 STR, UL486B LISTED
• Category: Large Terminals & Connectors
• Full Technical Description: Tin Plated Aluminum Material; 1/0 AWG Stranded Compact min. Run Conductor Size; 350 kcmil Max. Run Conductor Size; 4 AWG Stranded min. Tap Conductor Size; 350 kcmil Max. Tap Conductor Size; Split Bolt Installation; Aluminum/Copper Conductor Material; UL, CSA Approval; SERVIT[R], TRITAP[TM] Brand; RoHS Compatible; Size 2.18 Inch L X 1.5 Inch H X 1.5 Inch H; Stud/Bolt Size 1 3/8 Inch; Installation Torque 650 lb-Inch; Temperature Rating 90 Deg C; KSA Model
• Made In Usa: Yes
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Mechanical Single Cable Tap
• Unspsc: 39121408
• UPC 12 Digit: 781810183526
• SKU Name: bur ksa350
