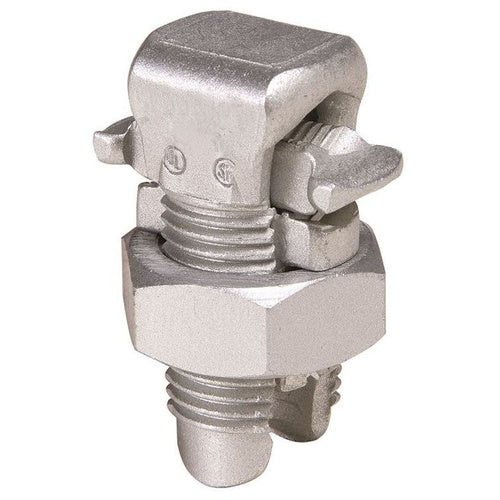

Burndy KSA6 6Str Split Bolt Connector

Overview

Burndy KSA6 6Str Split Bolt Connector

Product Specifications

• UPC: 78181001535
• Maximum Tap Conductor Size: 6 AWG Stranded
• Material: Tin Plated Aluminum Alloy
• Approval: UL 486B, CSA
• Additional Information: RoHS Compliant; Torque Rating 165 Inch-Pound; Cross Flat 0.75 Inch; Temperature Rating 90 Deg C
• Catalog Number: KSA6
• Brand Name: SERVIT[R], TRITAP[TM]
• Model: KSA
• Installation: Split Bolt
• Conductor Material: Copper/Aluminum
• Minimum Run Conductor Size: 10 AWG Solid
• Maximum Run Conductor Size: 6 AWG Stranded
• Minimum Tap Conductor Size: 10 AWG Solid
• Catalog Description: ALUMINUM SPLIT BOLT FOR AL/AL, AL/CU, OR CU/CU CONDUCTORS. MAX RUN TO MIN TAP: #6 STR-#10 SOL, UL486B LISTED
• Category: Large Terminals & Connectors
• Full Technical Description: Tin Plated Aluminum Alloy Material; 10 AWG Solid min. Run Conductor Size; 6 AWG Stranded Max. Run Conductor Size; 10 AWG Solid min. Tap Conductor Size; 6 AWG Stranded Max. Tap Conductor Size; Split Bolt Installation; Copper/Aluminum Conductor Material; UL 486B, CSA Approval; Servit [R], Tritap Brand; RoHS Compliant; Torque Rating 165 Inch-Pound; Cross Flat 0.75 Inch; Temperature Rating 90 Deg C; KSA Model
• Made In Usa: Yes
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Mechanical Single Cable Tap
• Unspsc: 39121408
• UPC 12 Digit: 781810015353
• SKU Name: bur ksa6
