Overview

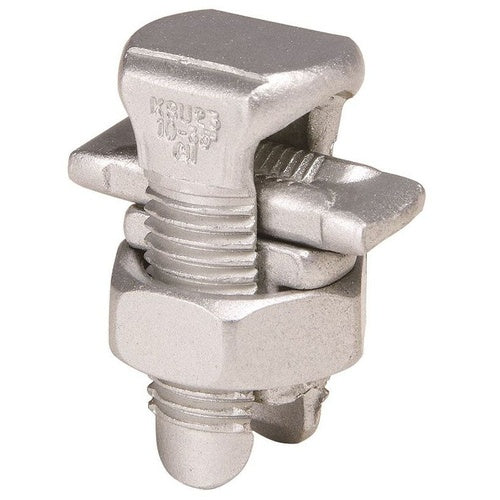

Burndy KSU-20 4Sol Copper/Aluminum Split Bolt

Product Specifications

• UPC: 78181003525
• Maximum Tap Conductor Size: 4 AWG Solid (Copper/Aluminum), 6 AWG (ACSR/AAAC 5005)
• Material: Tin Plated Copper
• Approval: UL, CSA
• Catalog Number: KSU20
• Brand Name: UNIVERSAL SERVIT[R]
• Model: KSU
• Installation: Split Bolt
• Conductor Material: Copper/Aluminum/ACSR/AAAC/5005
• Minimum Run Conductor Size: 10 AWG Solid (Copper/Aluminum), 6 AWG (ACSR/AAAC 5005)
• Maximum Run Conductor Size: 4 AWG Solid (Copper/Aluminum), 6 AWG (ACSR/AAAC 5005)
• Minimum Tap Conductor Size: 10 AWG Solid (Copper/Aluminum), 6 AWG (ACSR/AAAC 5005)
• Catalog Description: TIN-PLATED, HIGH STRENGTH COPPER ALLOY SERVIT WITH SPACER. SPACER SEPERATES DISSIMILAR CONDUCTORS AND PROVIDES LONG CONTACT LENGTH THAT PREVENTS HIGH PRESSURE POINT CONTACTS BETWEEN RUN AND TAP CONDUCTORS, 1.05 IN L.
• Category: Large Terminals & Connectors
• Full Technical Description: Tin Plated Copper Material; 10 AWG Solid (Copper/Aluminum), 6 AWG (Acsr/Aaac 5005) min. Run Conductor Size; 4 AWG Solid (Copper/Aluminum), 6 AWG (Acsr/Aaac 5005) Max. Run Conductor Size; 10 AWG Solid (Copper/Aluminum), 6 AWG (Acsr/Aaac 5005) min. Tap Conductor Size; 4 AWG Solid (Copper/Aluminum), 6 AWG (Acsr/Aaac 5005) Max. Tap Conductor Size; Split Bolt Installation; Copper/Aluminum/Acsr/Aaac/5005 Conductor Material; UL, CSA Approval; Universal SERVIT[R] Brand; KSU Model
• Made In Usa: Yes
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Mechanical Single Cable Tap
• Unspsc: 39121408
• UPC 12 Digit: 781810035252
• SKU Name: bur ksu20
